Omschrijving

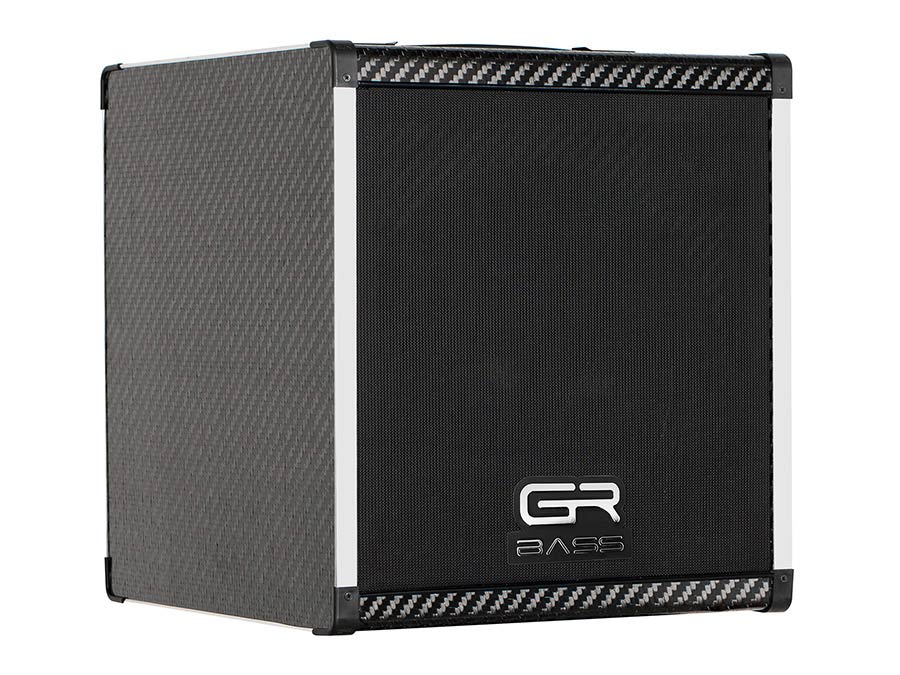

The AT Cube Acoustic is the lightest and most powerful 1×12 combo on the market specifically for double bass and acoustic bass.
Incredible portability without sacrificing the quality that distinguishes the GR sound.
800 watt head,1×12 speaker, two channels, two independent D.I. outputs, notch filter, compressor, and more features enclosed in just 10 kilograms make this combo a perfect solution in any situation.
The speaker with an impedance of 8 ohms allows you easily, with the addition of another cabinet to get the incredible power of 800 watt.
POWER
power head: 800w rms (aes standard) - power cabinet: 500w rms (aes standard)
WEIGHT
9,2 kg
BASS REFLEX
on rear
SENSITIVITY
99 db spl

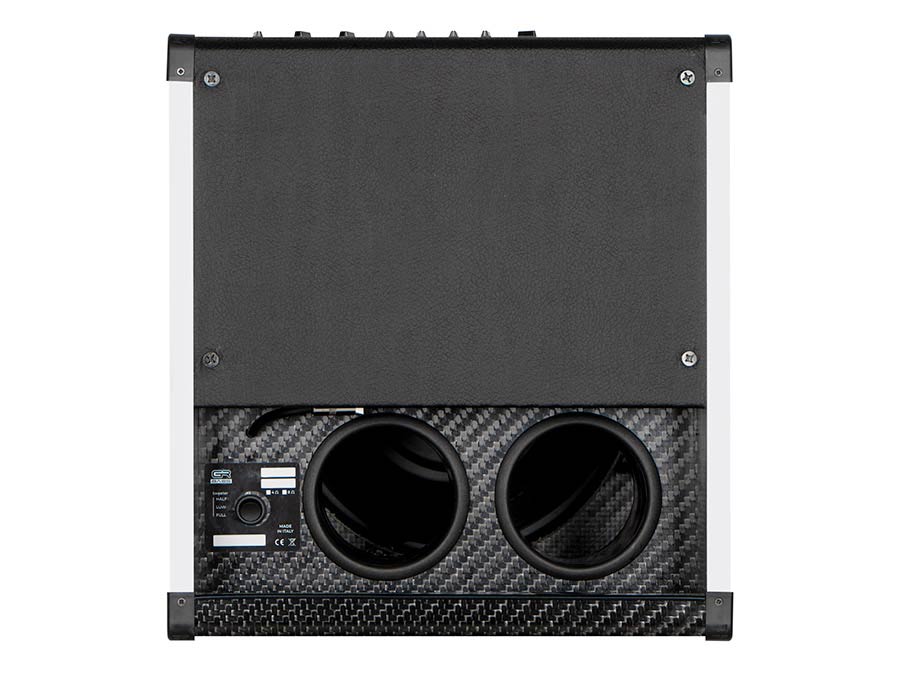

REAR PANEL
- ac power socket (230v - 115v)
- send
- return
- d.i. output (ch1/ch2)
- gnd lift button
- pre-post di button
- speakon output
- ethernet port
- line out dual / line out mix
DIMENSIONS
40 x 45,5 x 40 cm
SPEAKERS
12'' custom jensen/sica woofer
horn driver 1"
tweeter
3 positions switch
frequency response
38hz to 18 khz

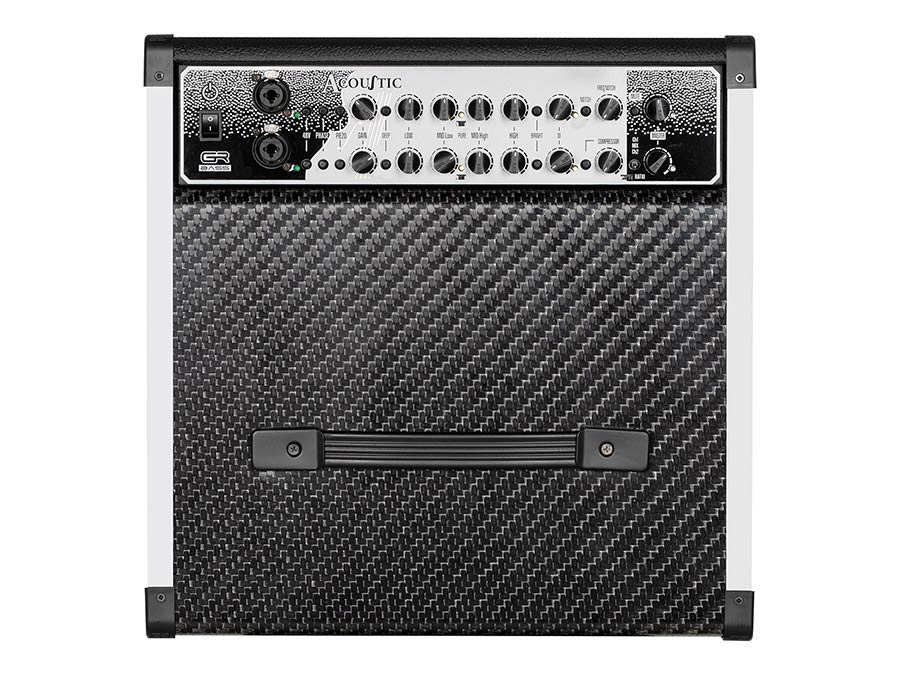

FRONT PANEL
- input xlr/jack (ch1, ch2)
- 48v phantom power (ch1, ch2)
- phase (ch1, ch2)
- piezo (ch1, ch2)
- gain control knob (ch1, ch2)
- bass knob (ch1, ch2)
- mid-low knob (ch1, ch2)
- mid-high knob (ch1, ch2)
- high knob (ch1, ch2)
- deep button (ch1, ch2)
- bright button (ch1, ch2)
- pure switch (ch1, ch2)
- di volume control knob (ch1, ch2)
- notch filter button
- freq notch knob
- compressor knob
- ratio selector
- master knob (ch1, ch2)
- operation led (ch1, ch2)
- mute button
- channel selector
- power on/off switch
