| Keyboard: |
88-key, fully-weighted action with velocity and pressure (aftertouch) sensitive adjustable keys (Fatar TP/40L)
|
| Display: |

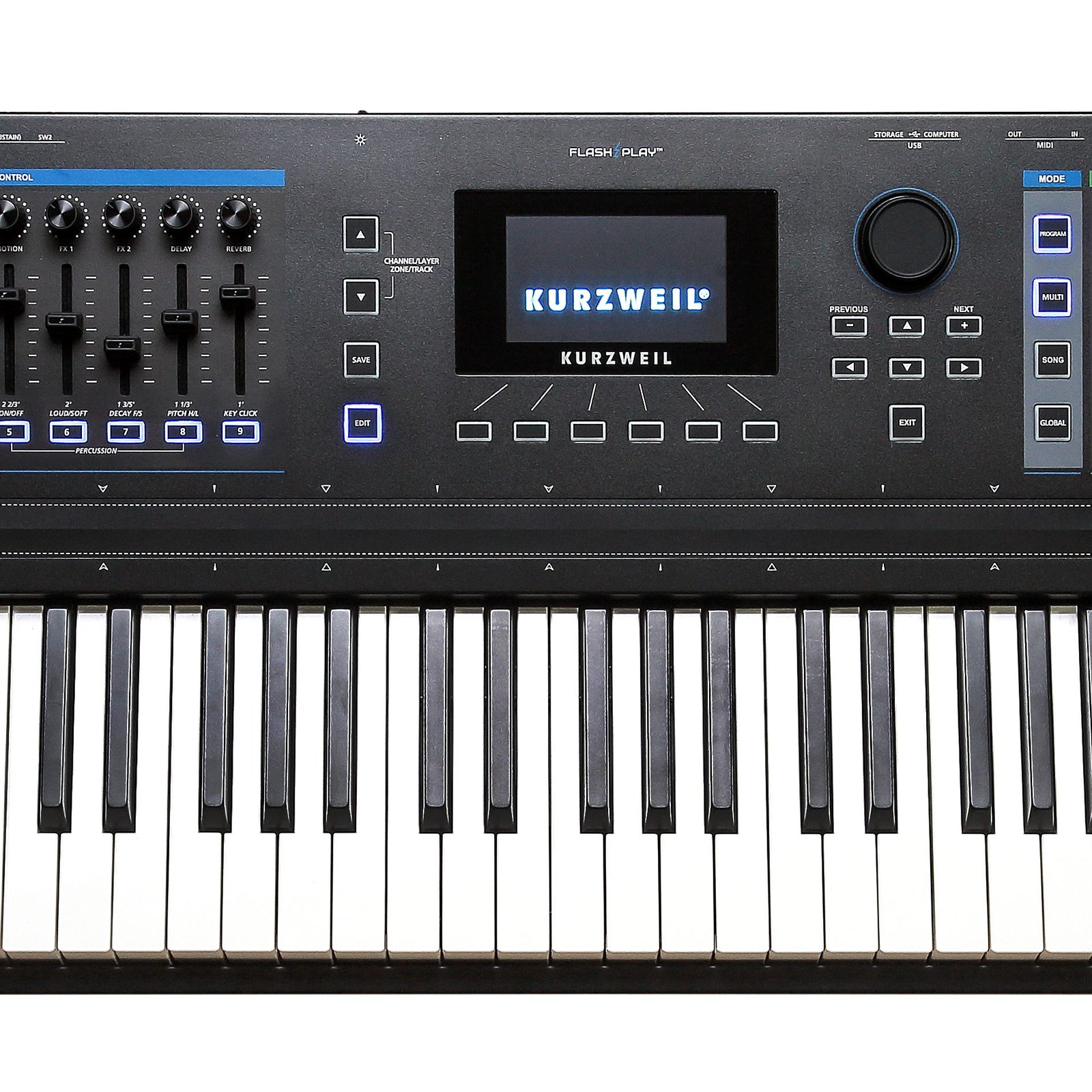

480 x 272 pixel high resolution color LCD with adjustable brightness |
| Polyphony: |
256 voice polyphony, dynamically allocated |
| Multitimbral: |
16 parts (one per MIDI channel) |
| Architecture: |
Dynamic VAST: powerful synthesis engine, with user programmable DSP algs and routing.
Cascade Mode: route one layer through the DSP of any other layer within a program – up to 32 consecutive layers deep!
KB3 ToneReel Engine
6-Operator FM Engine
VA1 Virtual Analog Oscillators + DSP |
| Sample Flash Memory: |
4.5 GB factory samples
3.5 GB of re-loadable, non-volatile, user flash memory |
| Factory Programs: |
1500+ |
| User Programs: |
4000+ |
| Factory Multis: |
700+ (up to 16 independent controller zones) |
| User Multis: |
4000+ |
| General MIDI: |
No |
| Kurzweil String Resonance: |
Yes |
| Master EQ/Compressor: |
Yes |
| Effects: |
Over 1000 complex effect chains, incorporated into programs featuring our award winning effects – reverbs, delays, chorus, flange, phaser, EQs, distortions, rotary speaker simulators, compressors, and more
32 total FX units |

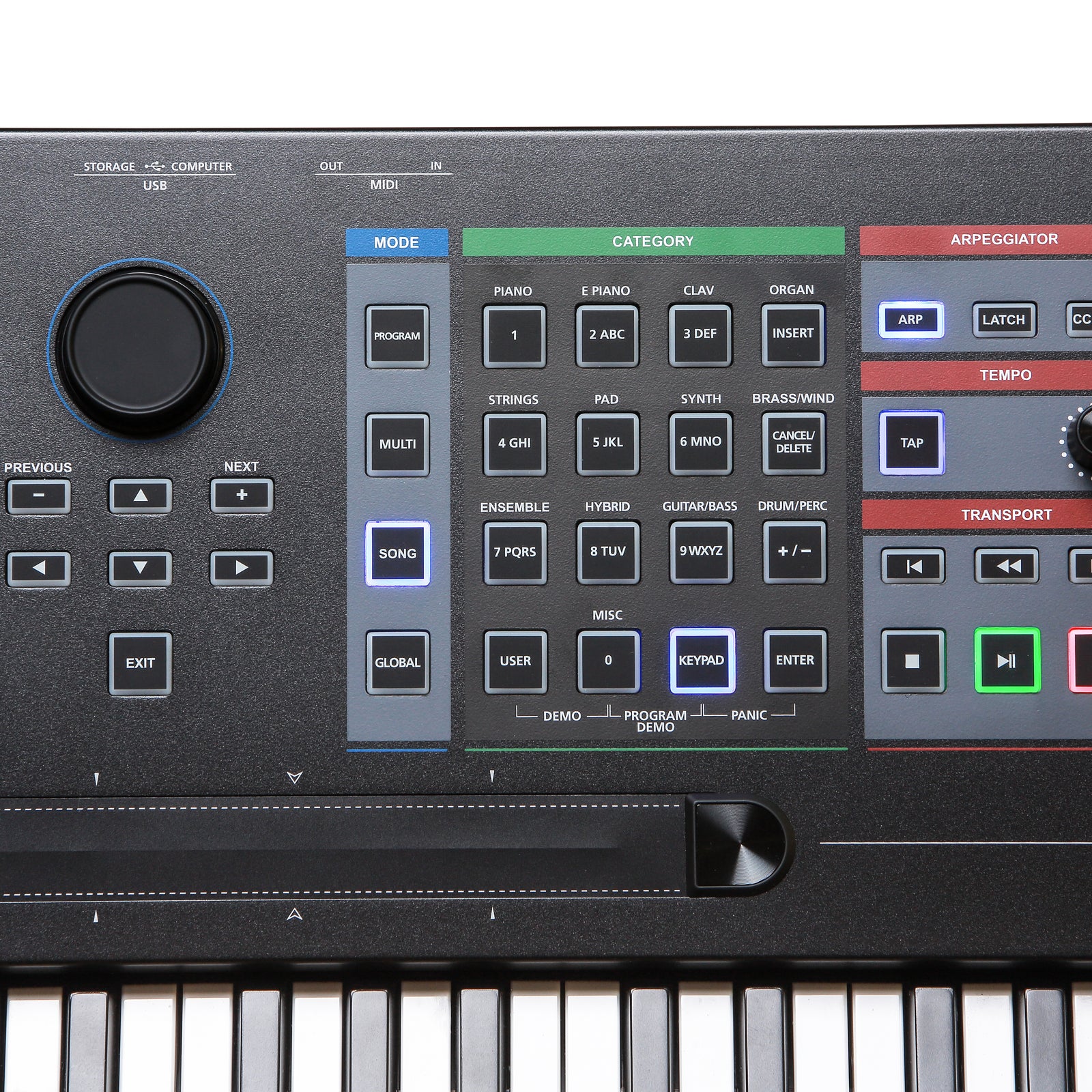

| Controllers: |
Monopressure (aftertouch)
1 pitch wheel
1 assignable modulation wheel

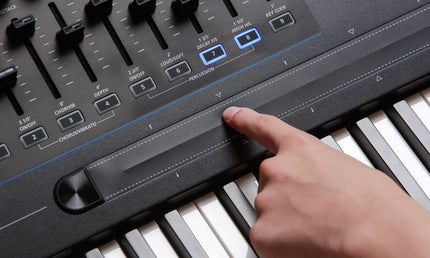

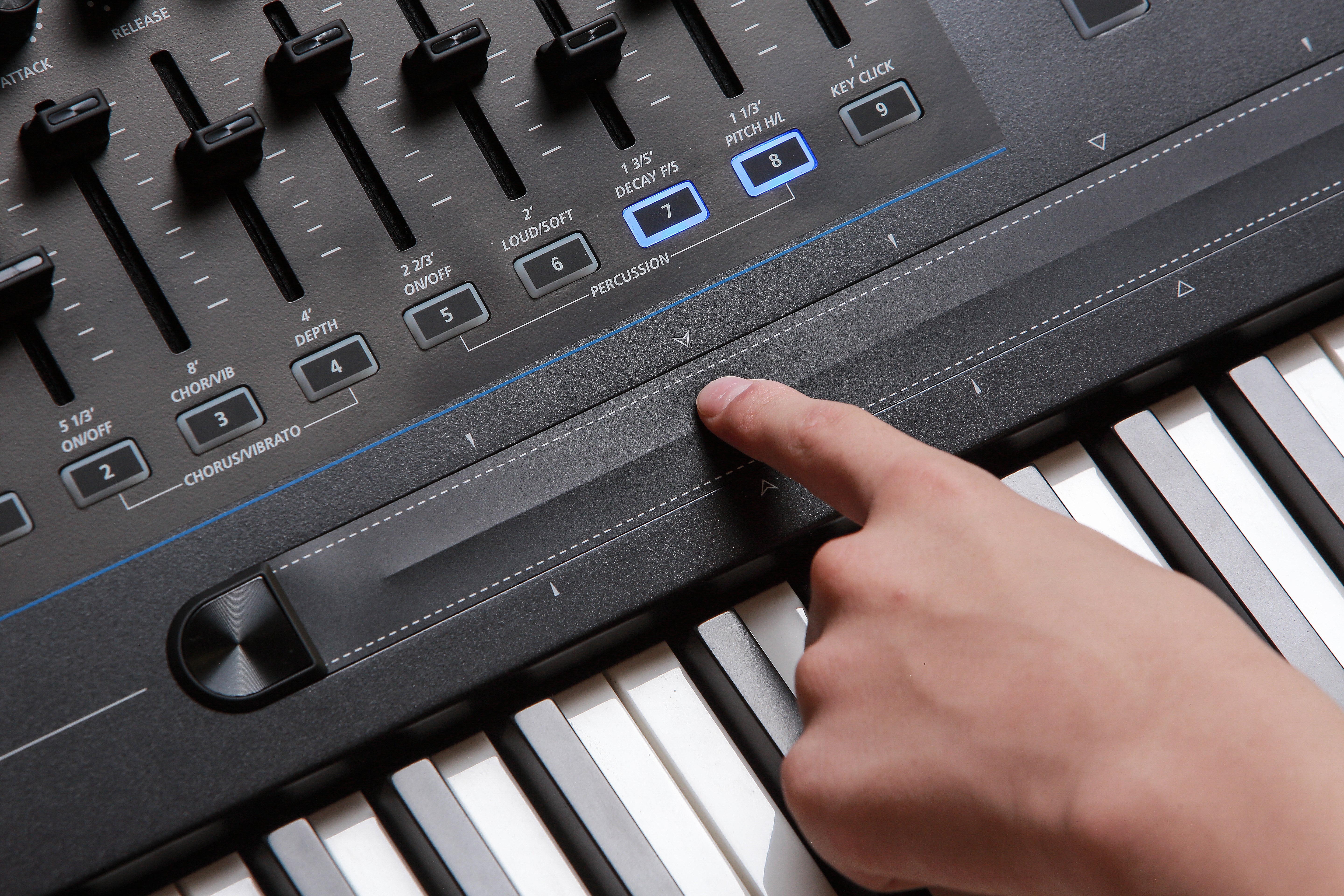

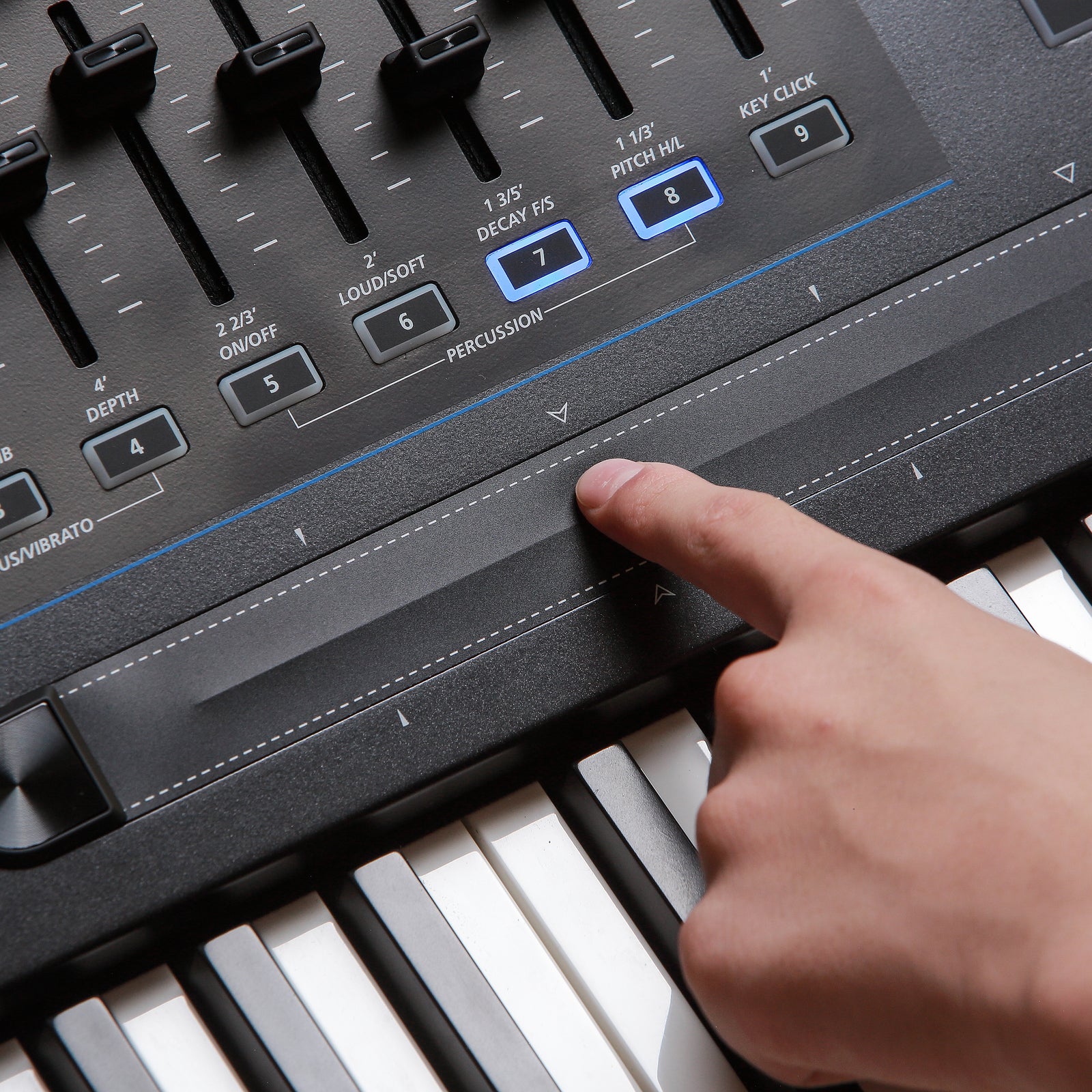

1 assignable ribbon controller

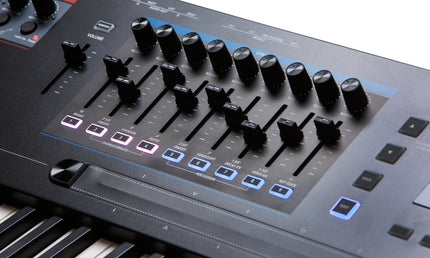

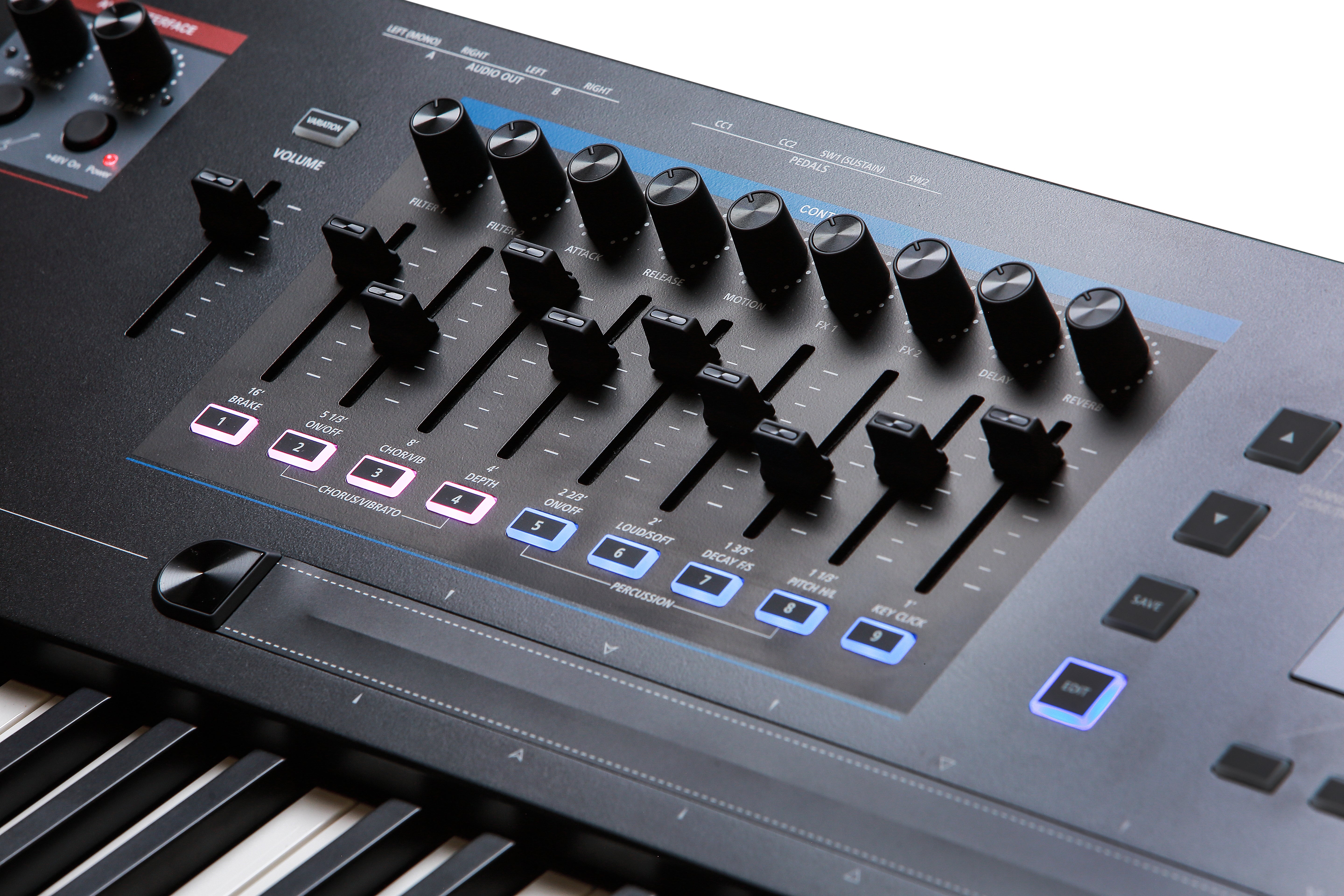

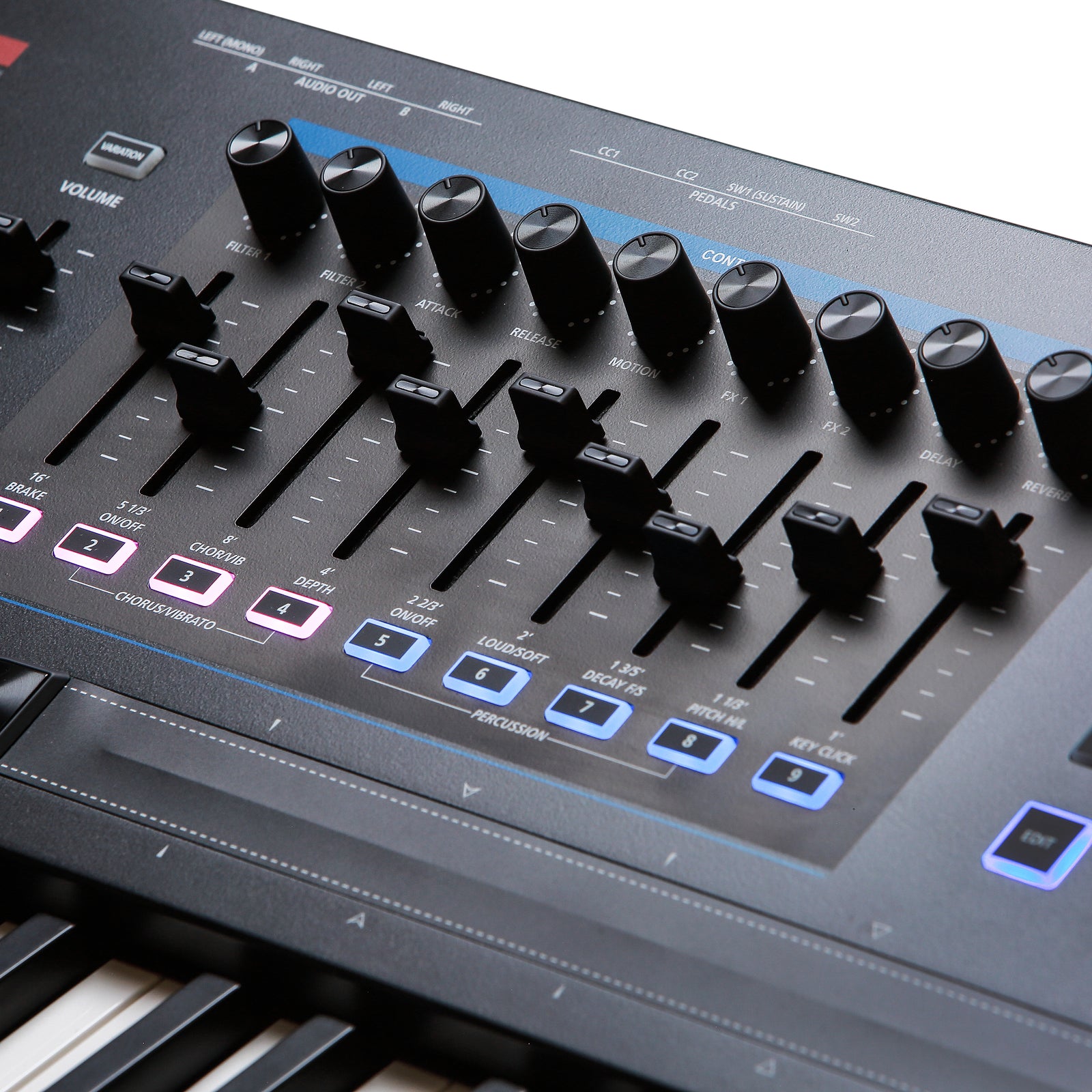

9 assignable sliders
9 assignable knobs
10 assignable buttons

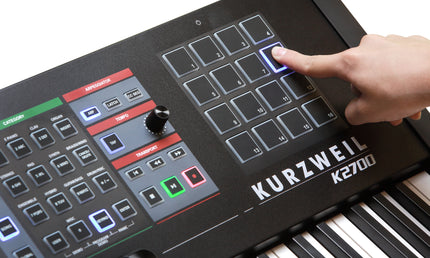

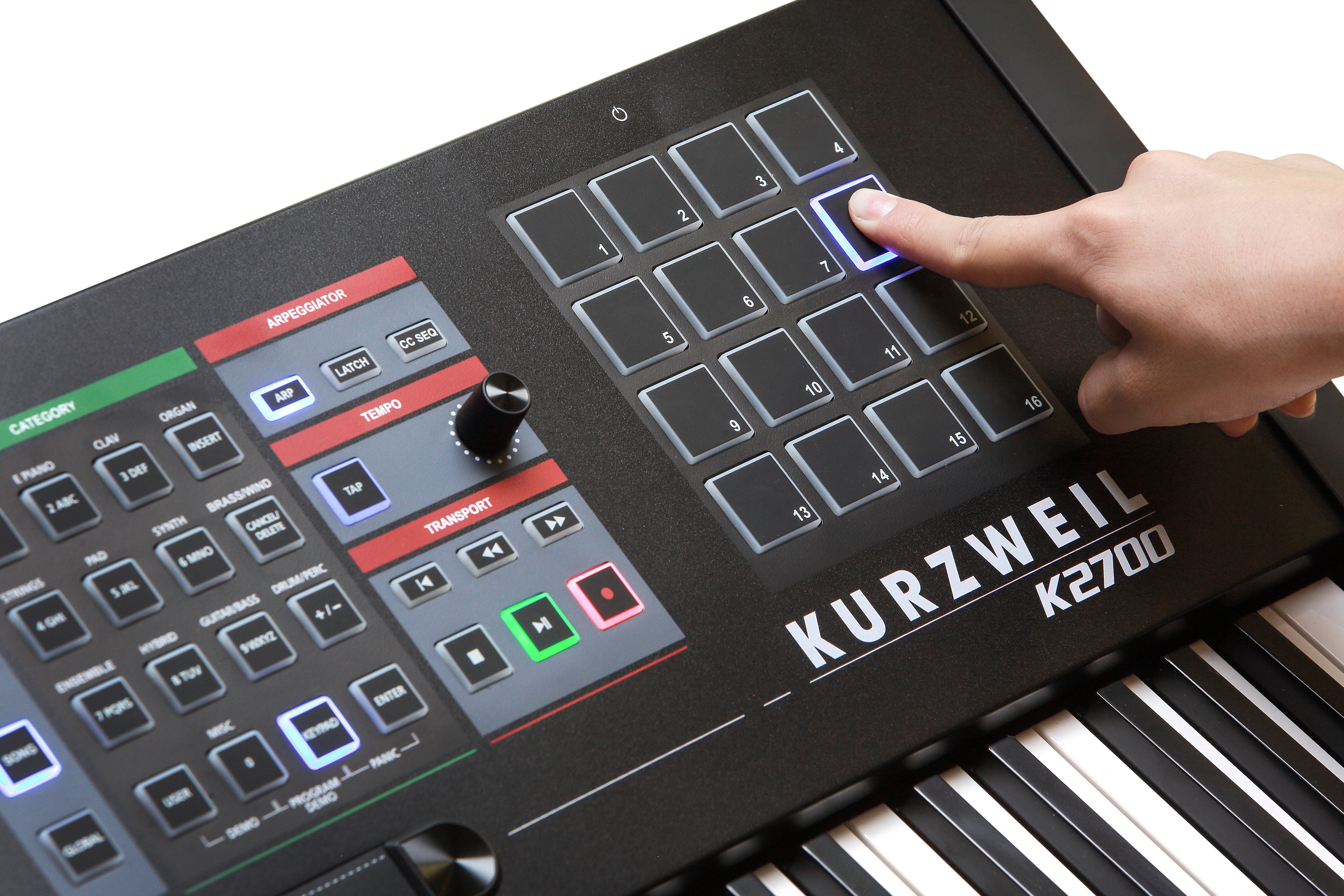

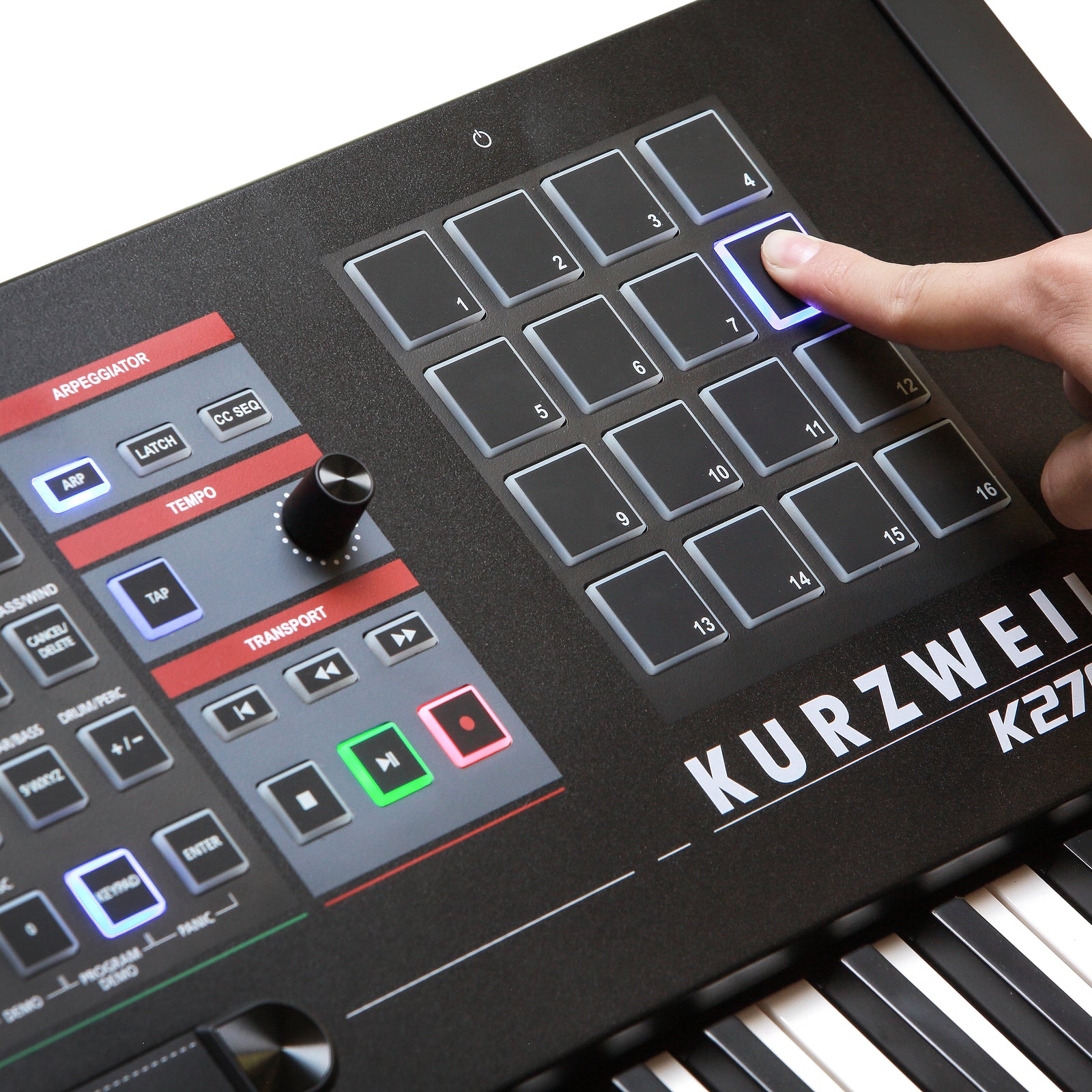

16 assignable velocity sensitive pads
2 transpose switches

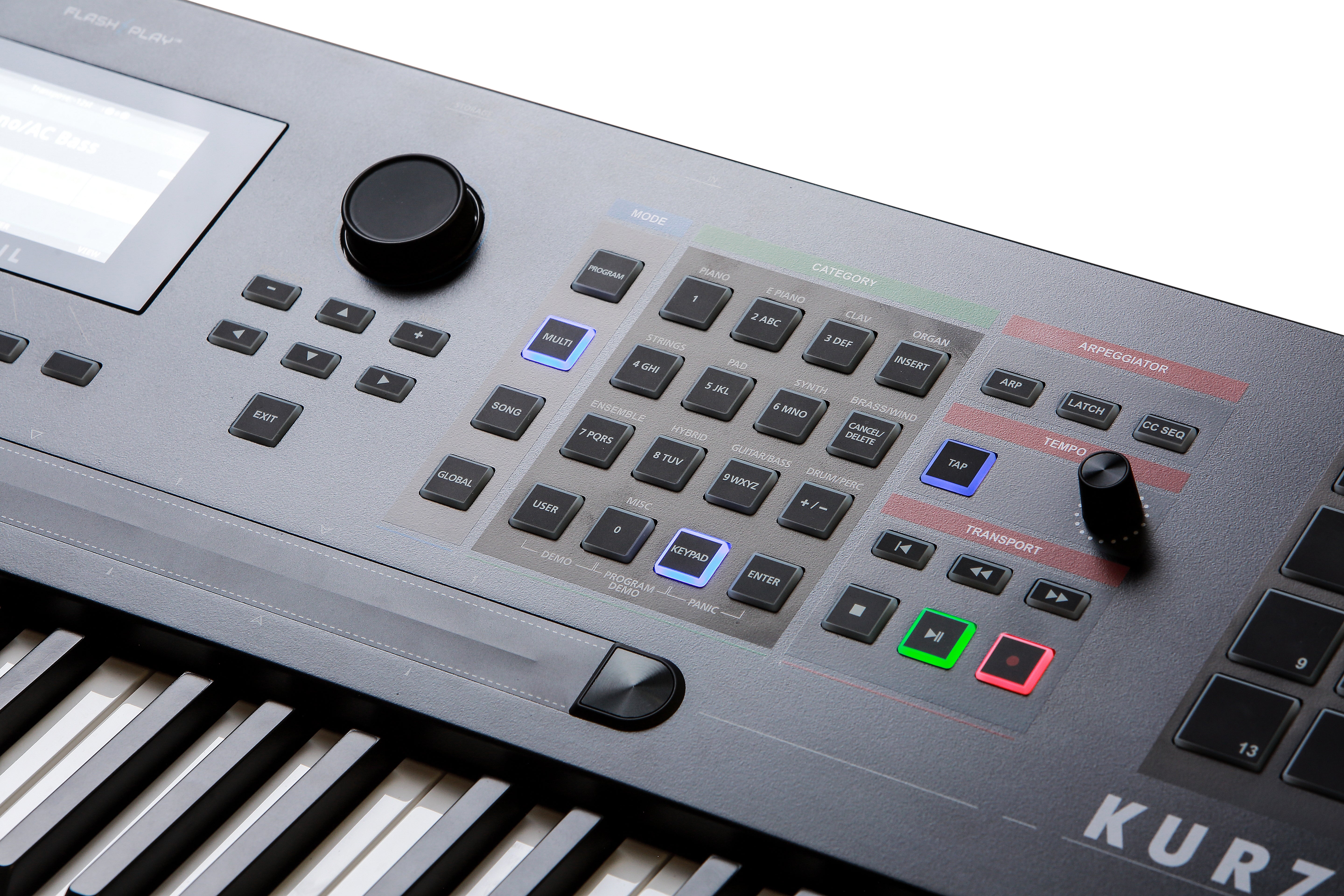

Tap tempo button and tempo knob

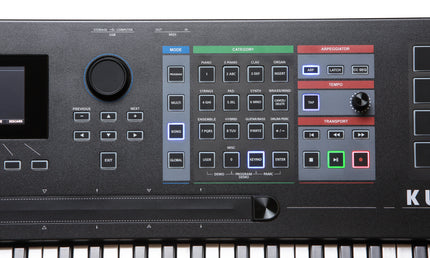

Arp controls
Transport controls
*2 switch pedal inputs each supporting single/dual switch pedal or single half damper pedal (1 switch/sustain pedal is included; half-damper pedals sold separately)
2 continuous control pedal inputs |
| Sequencer: |
16 Tracks; 960 PPQ resolution. Song editing functions include both event and track-based tools like quantize, swing, remap, controller scaling and more. |
| MIDI CC Step Sequencers: |
16 simultaneous |
| Riffs: |
16-per Multi |
| Arpeggiators: |
1-per Program, 16-per Multi |
| System Sample Rate: |
48kHz |

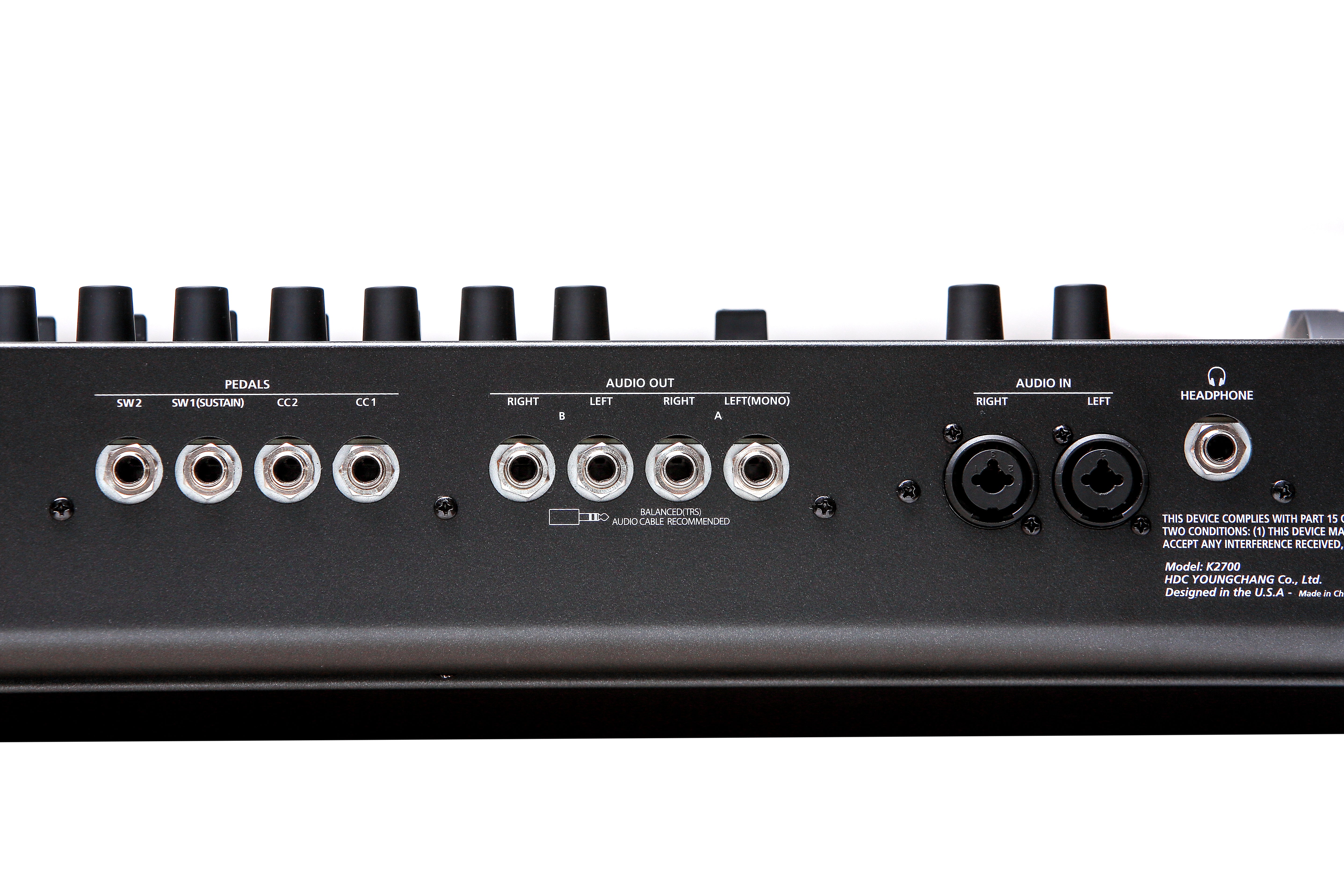

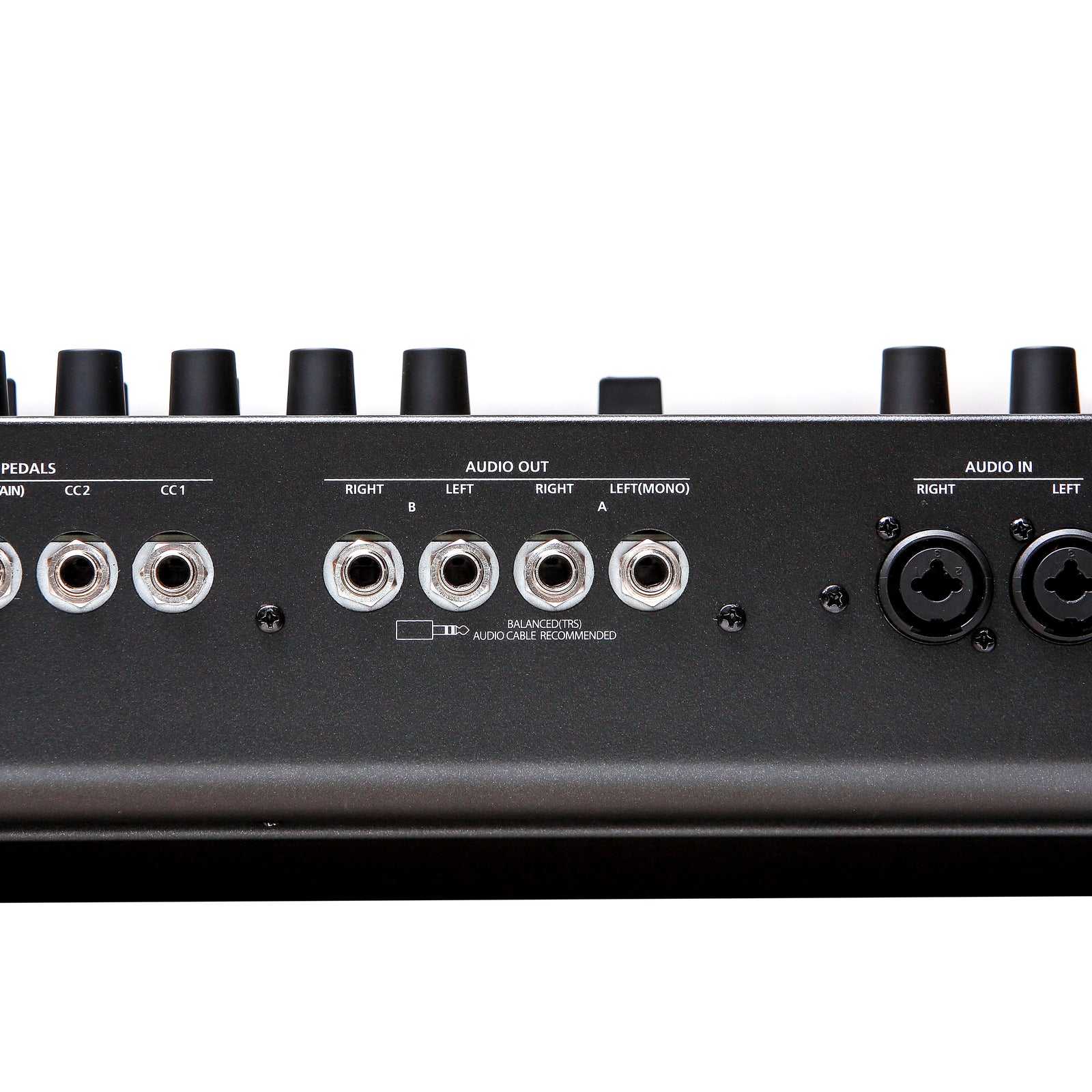

| Analog Outputs: |
Four (2 pairs) 1/4″ balanced TRS analog (32-bit DACs)
Automatic mono switching on main outs
+21dBu maximum output
50Ω balanced source impedance |

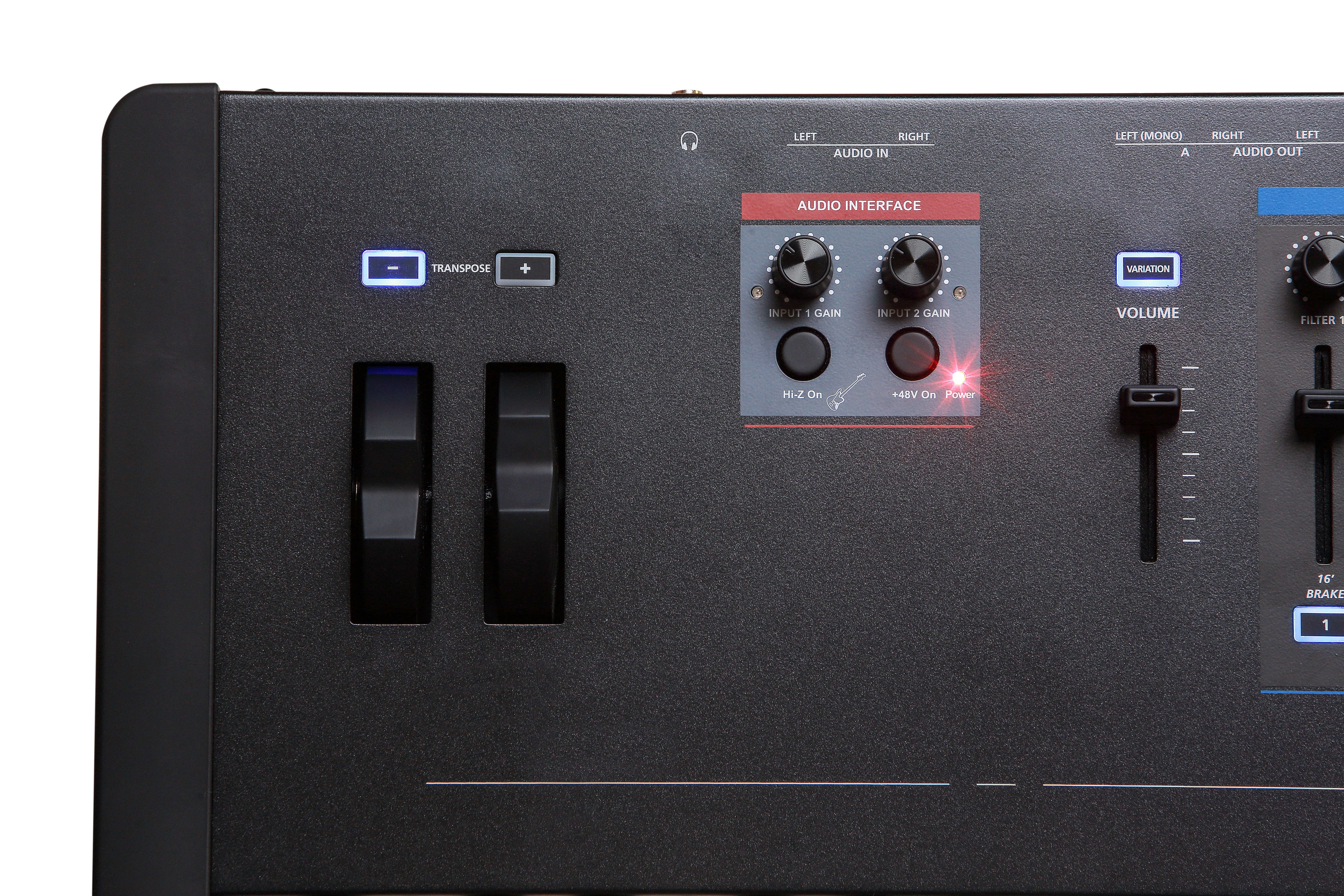

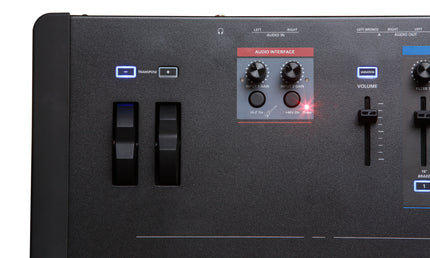

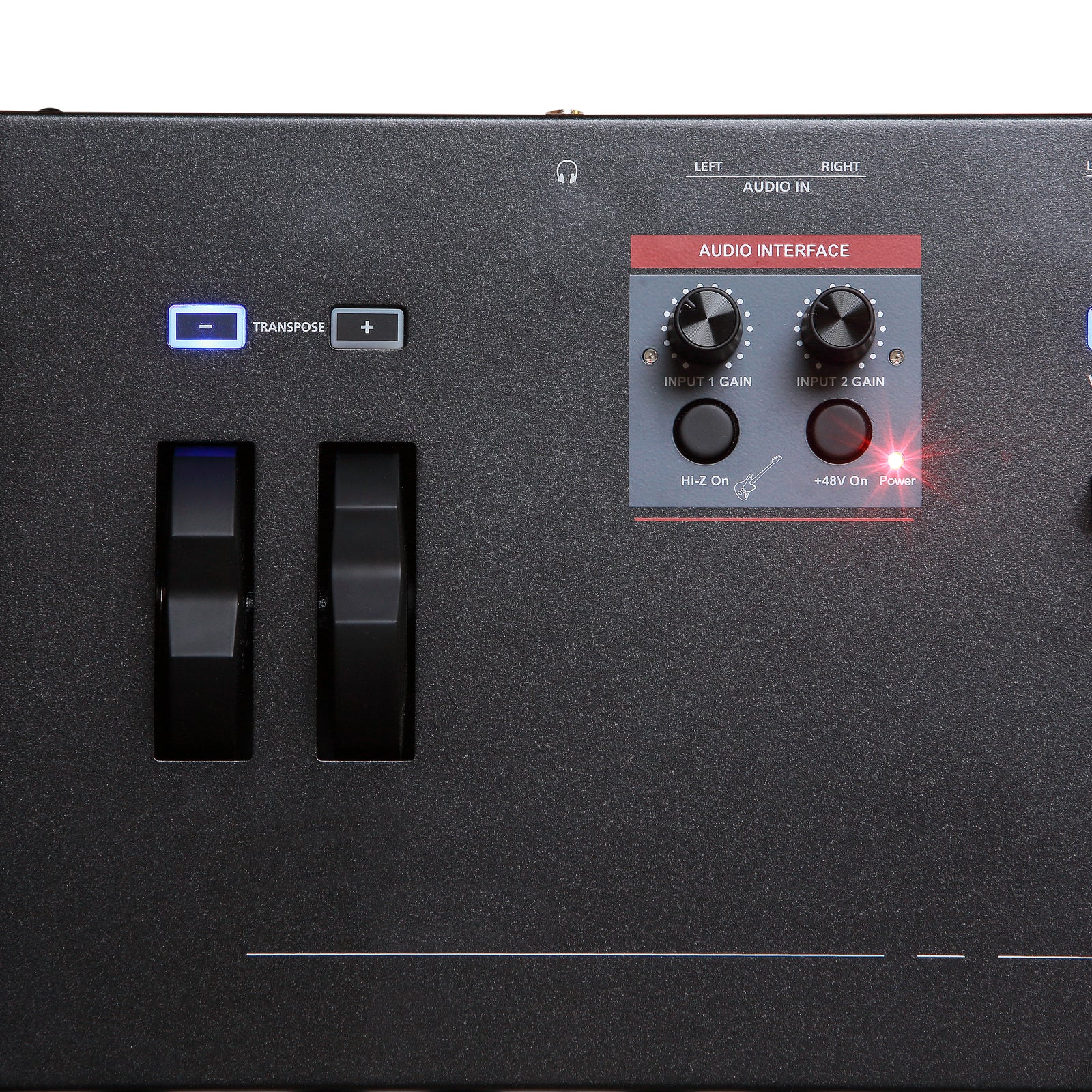

| Audio Inputs: |
2 combination 1/4”/XLR jacks (one stereo pair) accepting Line/Instrument/Microphone level signals.
Dedicated Gain knobs, Hi-Z switch for electric guitar/bass, and +48V Phantom Power switch for Microphones. |
| Headphones: |
1 back panel 1/4″ headphone output
130mW into 32 ohm headphones |

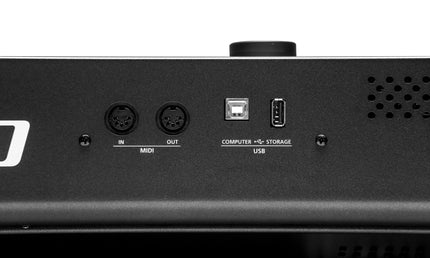

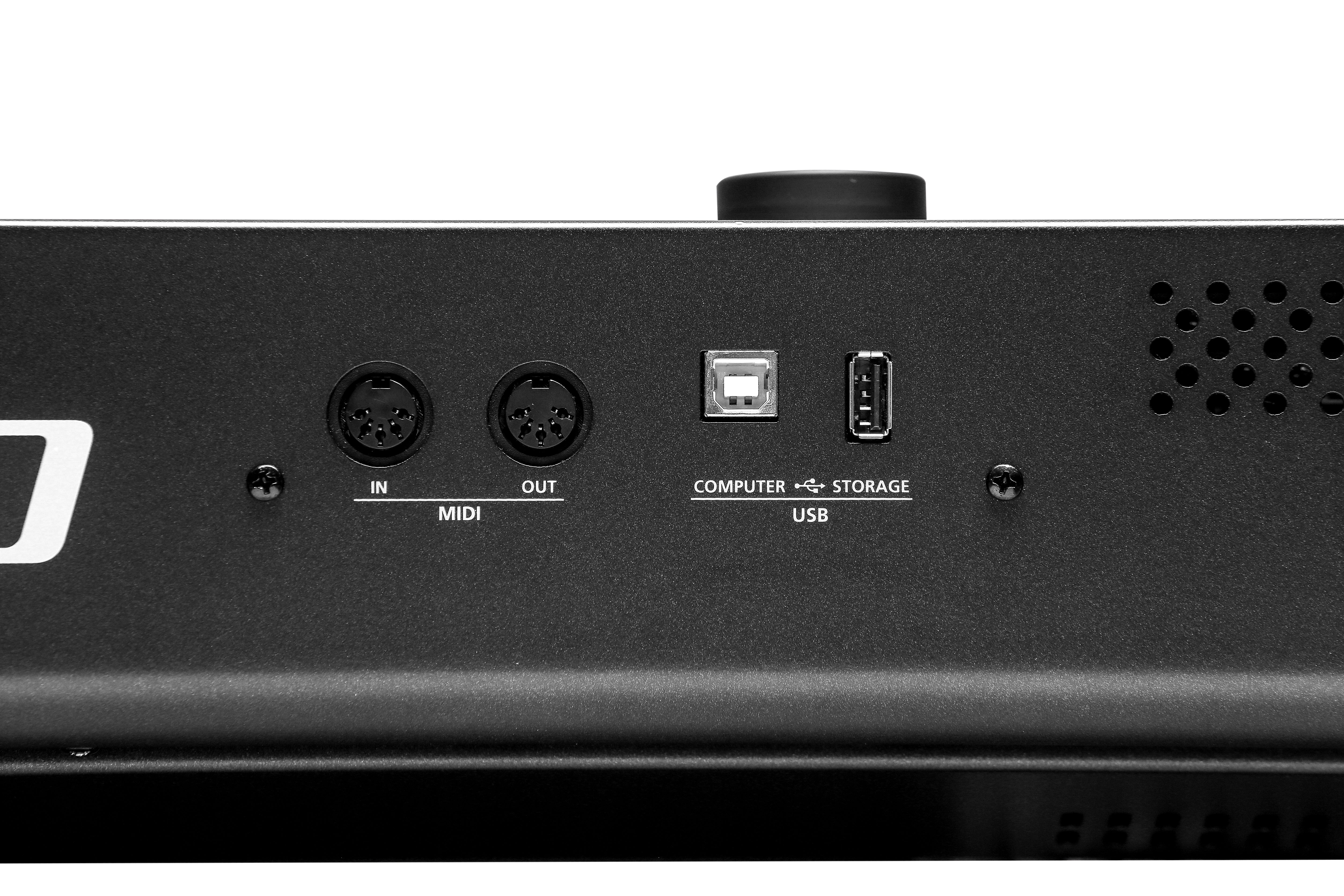

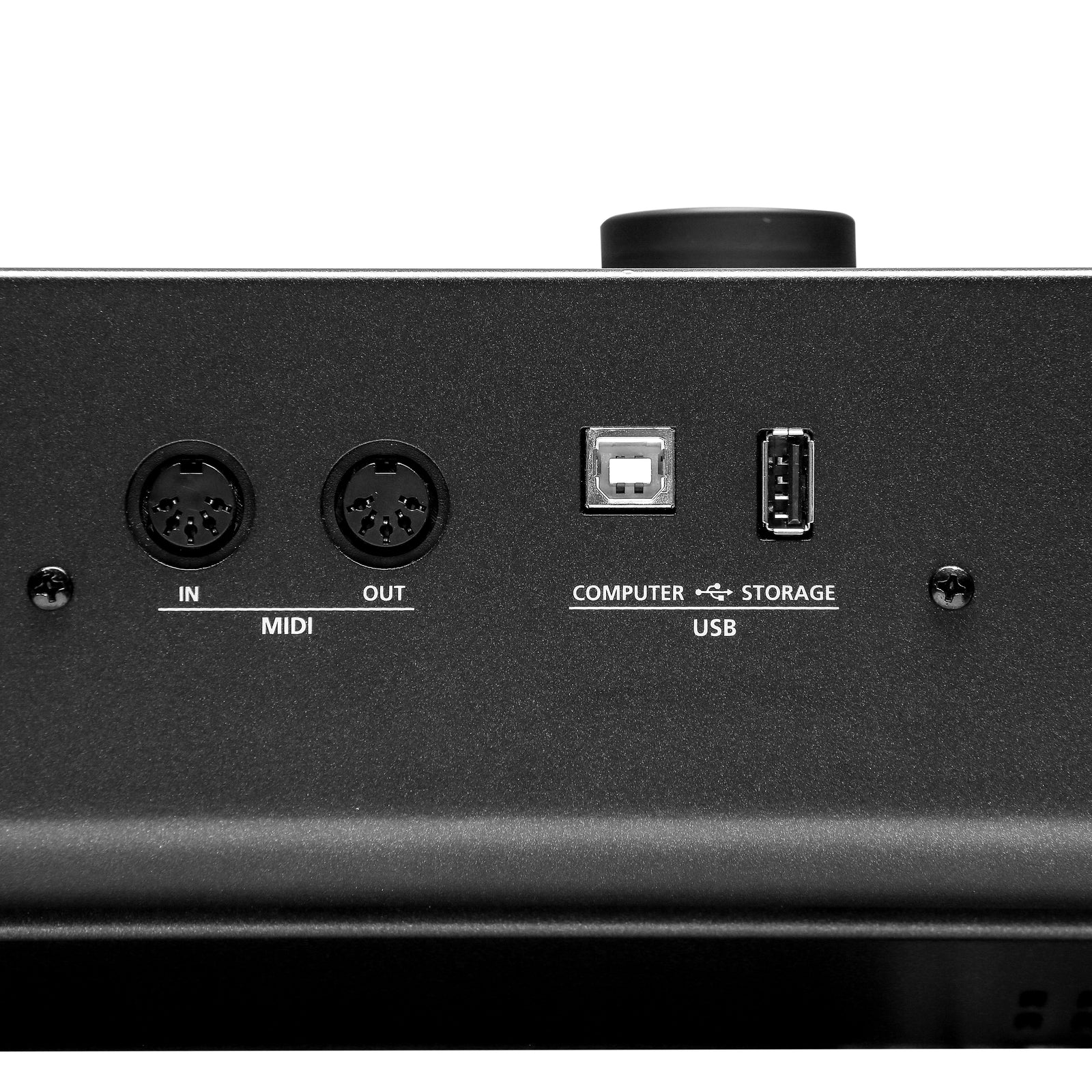

| MIDI: |
In, Out |

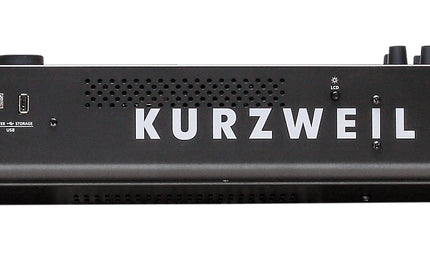

| USB: |
Stereo audio in/out over USB (sample rates: 44.1, 48, 88.2, 96, 176.4, 192 Khz. Bit depths: 16, 24)
Complete MIDI functionality over USB
Play and control the K2700 with a USB MIDI controller (USB host functionality)
User Object file transfer to/from USB Flash Drive
Operating System updates from USB Flash Drive |
| Software Editors: |
External editors for Mac OS X, Windows PC and iOS* devices
(*coming soon) |
| FREE OS Updates: |
OS updates via USB drive |
| Included Accessories: |
Power cable, Switch pedal, USB cable |
| Height: |
5.5” (13.97 cm) |
| Depth: |
15.5” (39.37 cm) |
| Length: |
51” (129.54 cm) |
| Weight: |
52 lb (23.58 kg) |
| Power: |
Internal power supply |
