Omschrijving

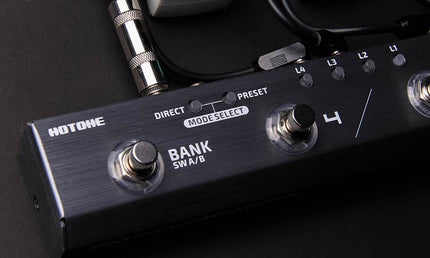

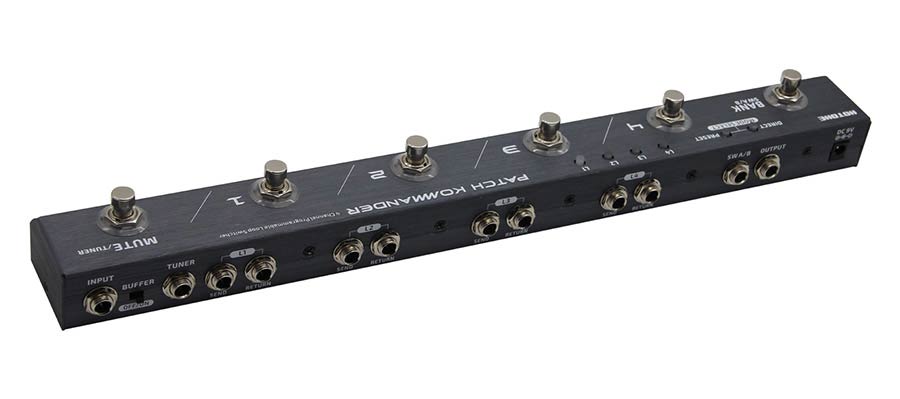

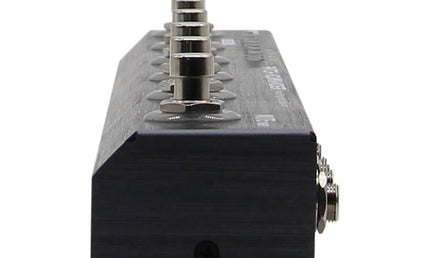

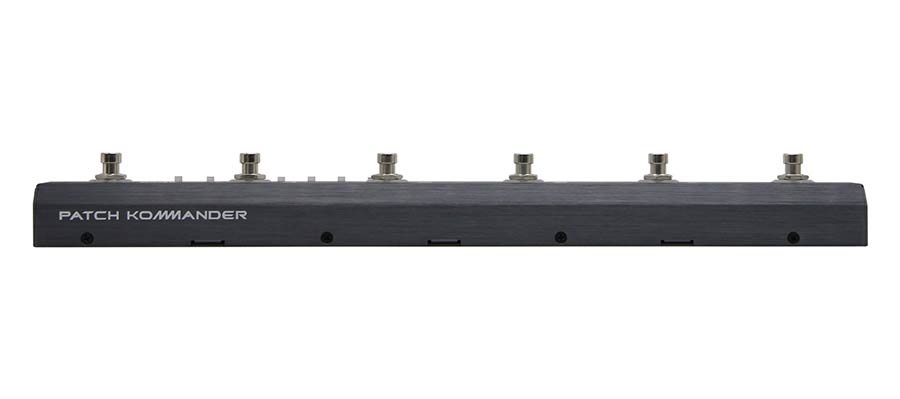

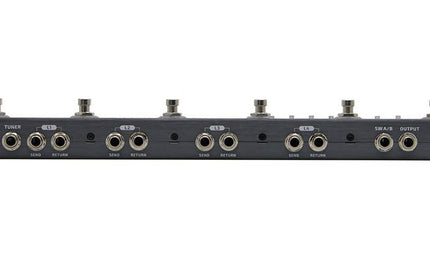

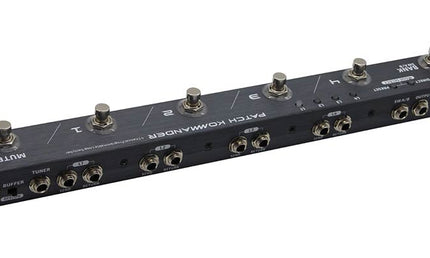

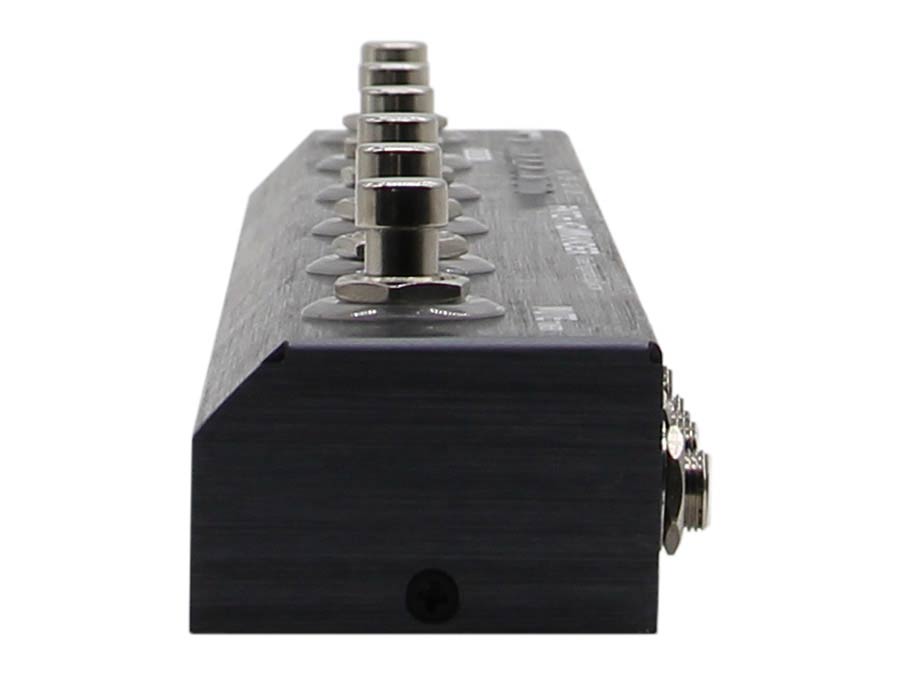

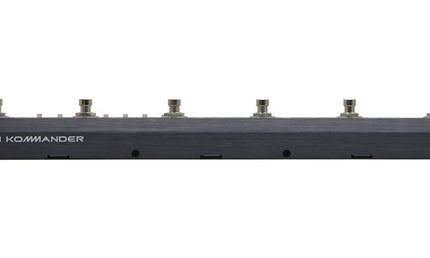

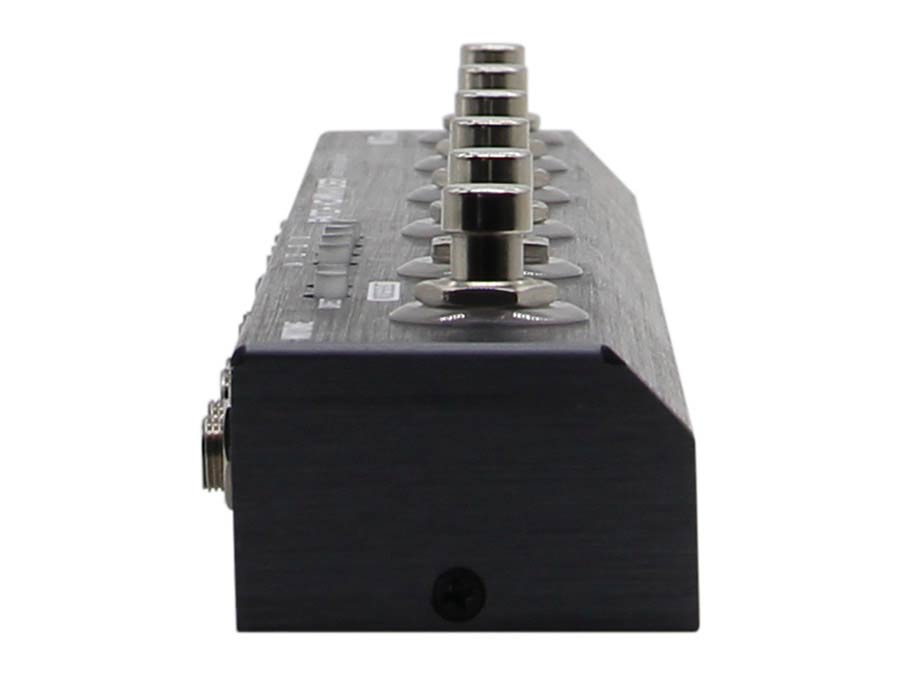

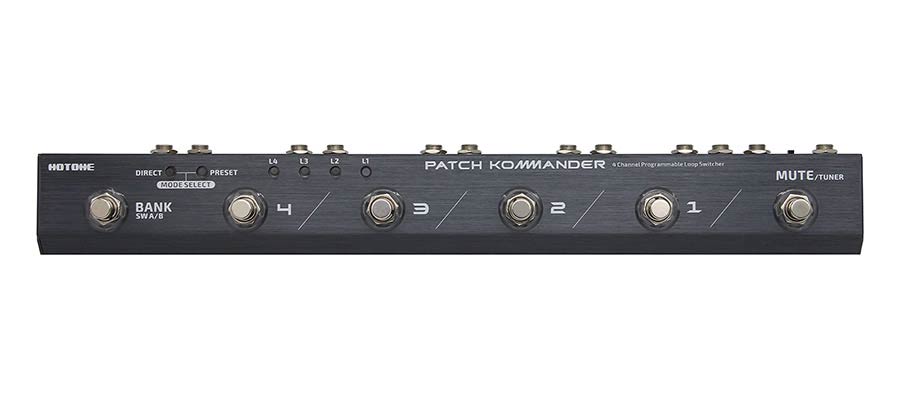

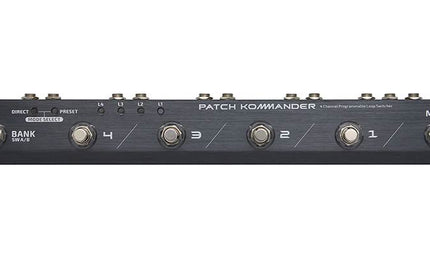

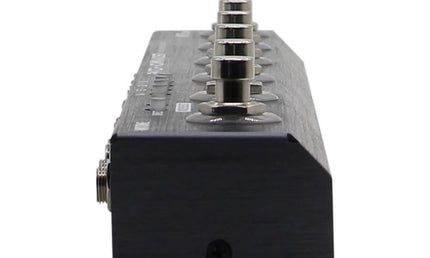

The Hotone Patch Kommander is a four channel programmable loop switcher.
The Patch Kommander is a light-weight, programmable loop switcher that keeps your pedals and effects in order. Four true-bypass loops guarantee a pristine signal, a built-in input buffer saves your highs and harmonics, and an ultra-intuitive control panel sets you free from complex, annoying patch programming.
Features
-Compact size, rock solid aluminum casing

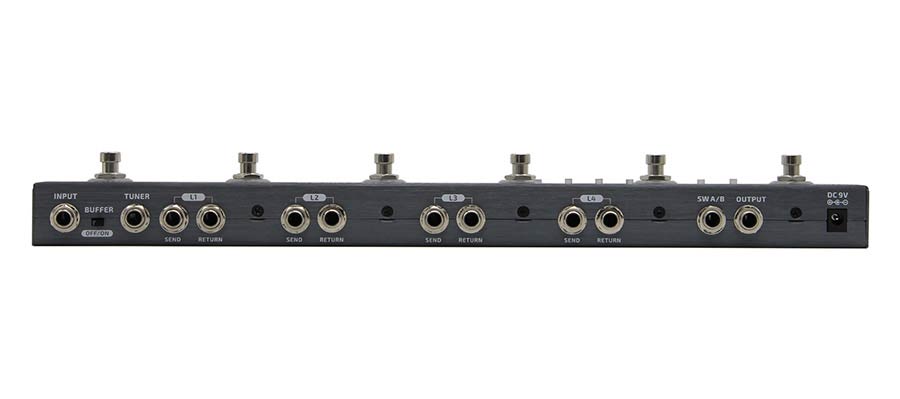

-4 independent relay-based True Bypass audio loops
-Switchable high quality input buffer for preventing high frequency loss
-Mute/Tuner function with independent tuner output

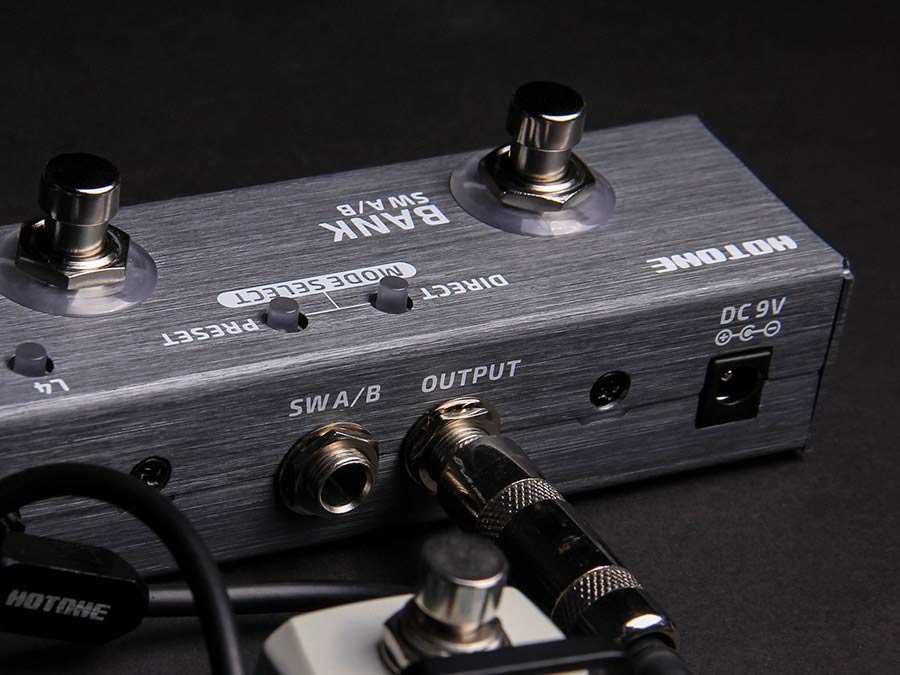

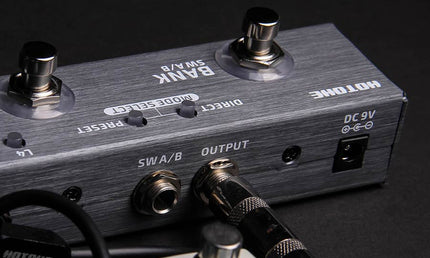

-SW A/B function for amp channel switching

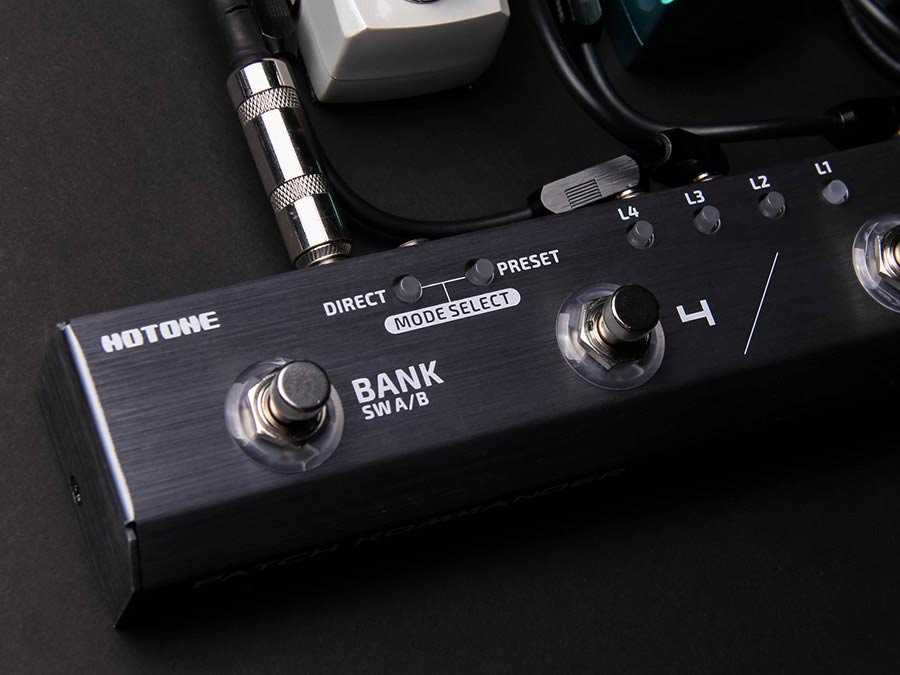

-2 switching modes:
- Direct mode for instant access
- Preset mode with 12 programmable presets for different combinations
-Low switching noise
-9V DC power supply
Specifications
Numbers of presets: 12 (4 presets × 3 banks)
Numbers of Loops: 4 (isolated)
Bypass mode: Relay True Bypass or Analog Buffer Bypass
Input impedance: 1M Ohms
Output impedance: 100 Ohms
Power Requirement: 9V
Current Consumption: 150mA
Dimensions: 403mm (D) × 56mm (W) × 48mm (H)
Weight: 535g
