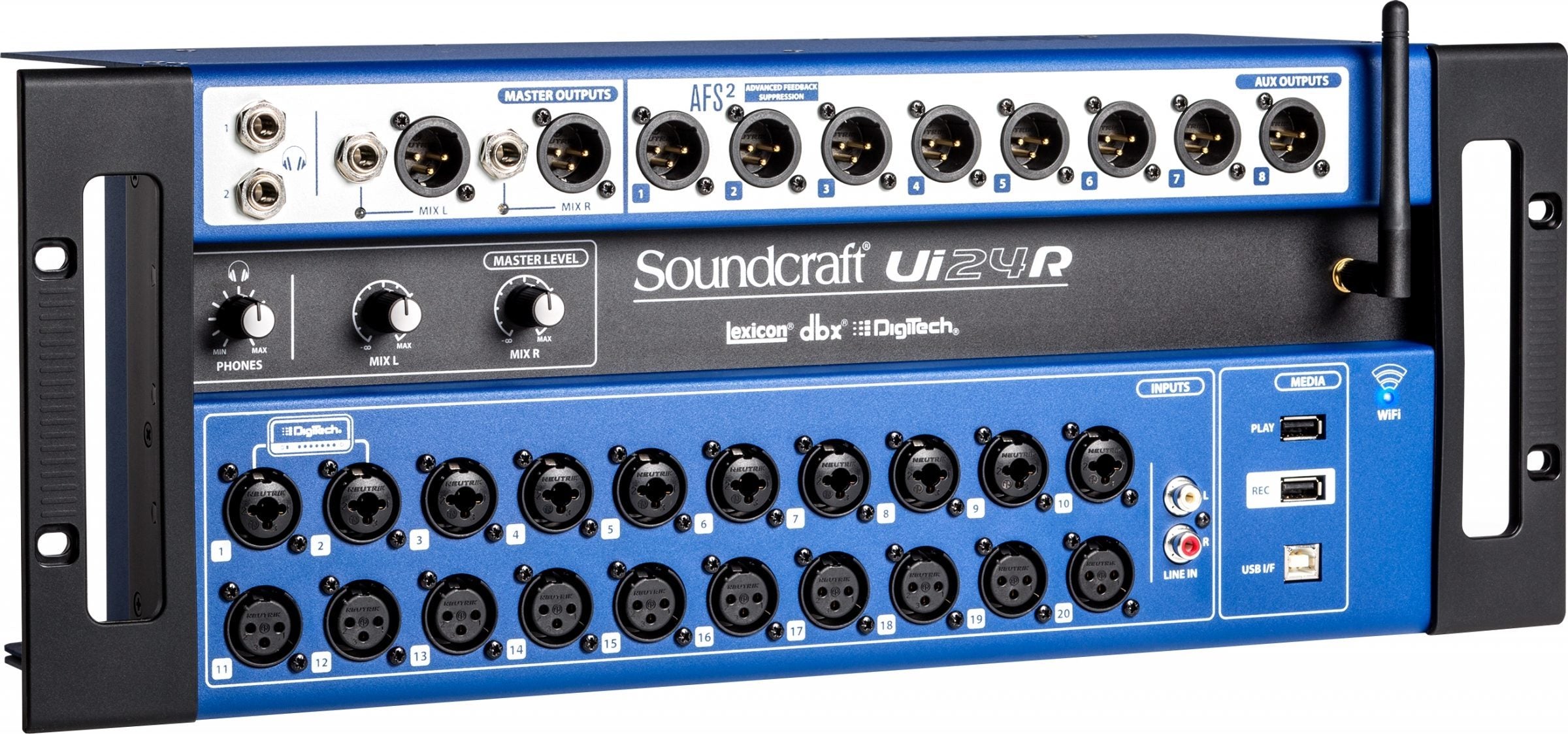

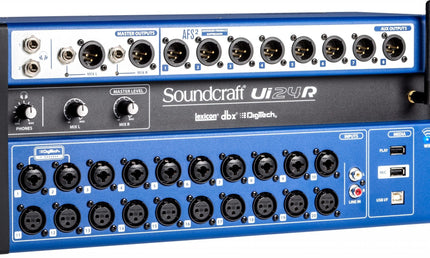

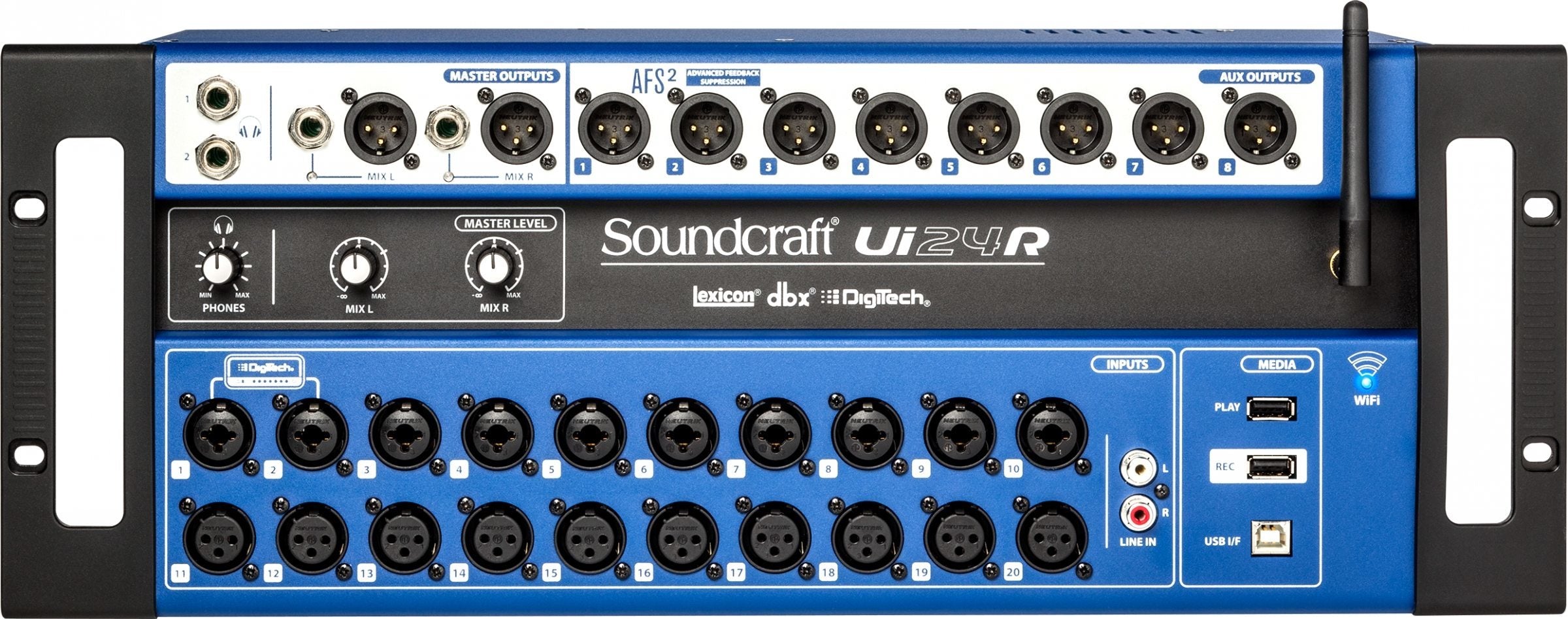

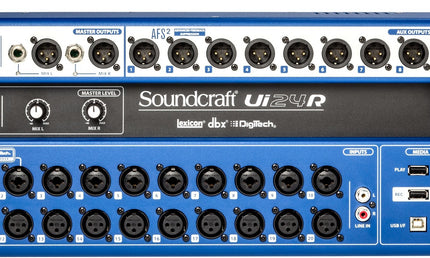

Soundcraft - SCRUI24R - 24 CHannel Digital Mixer

    Omschrijving

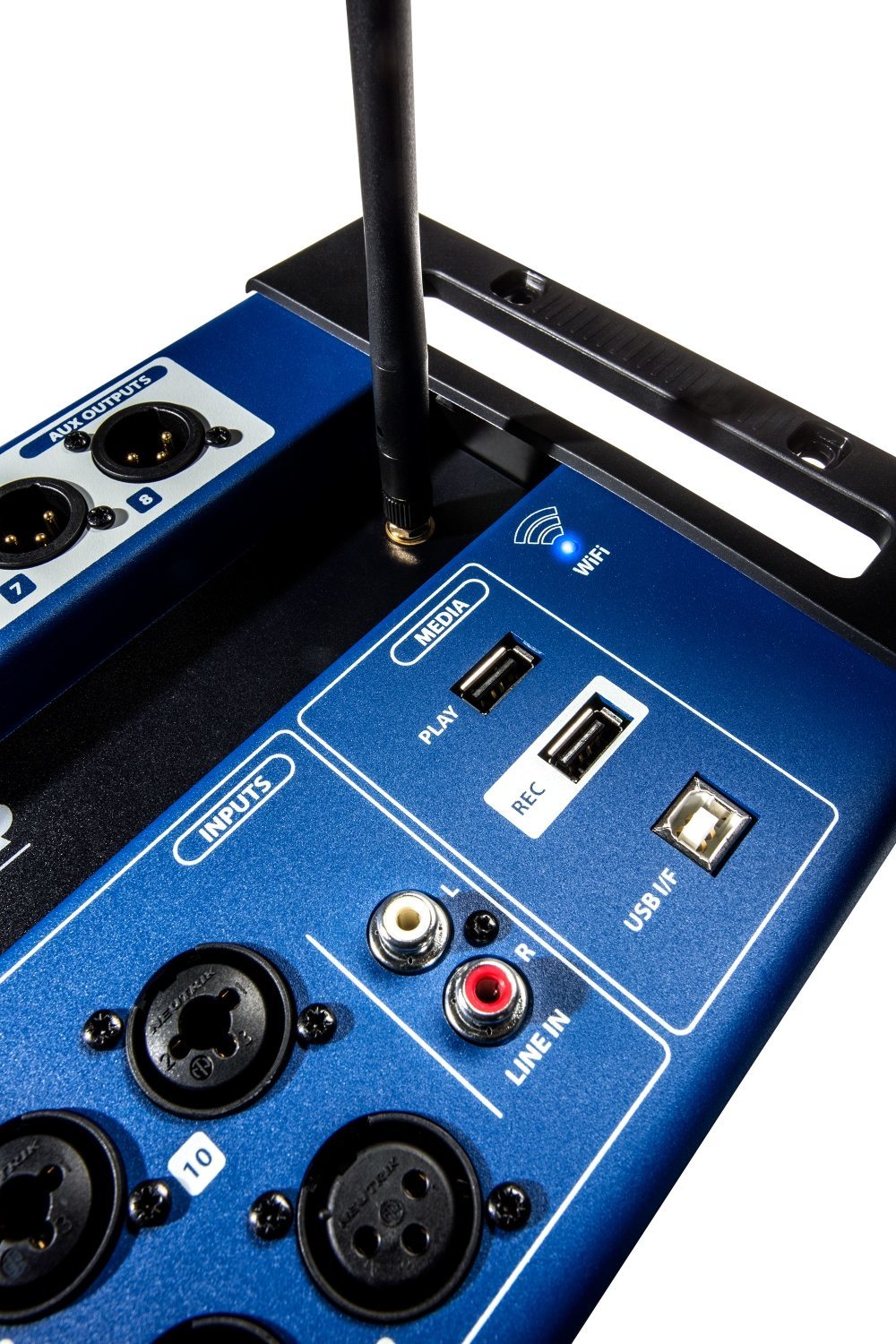

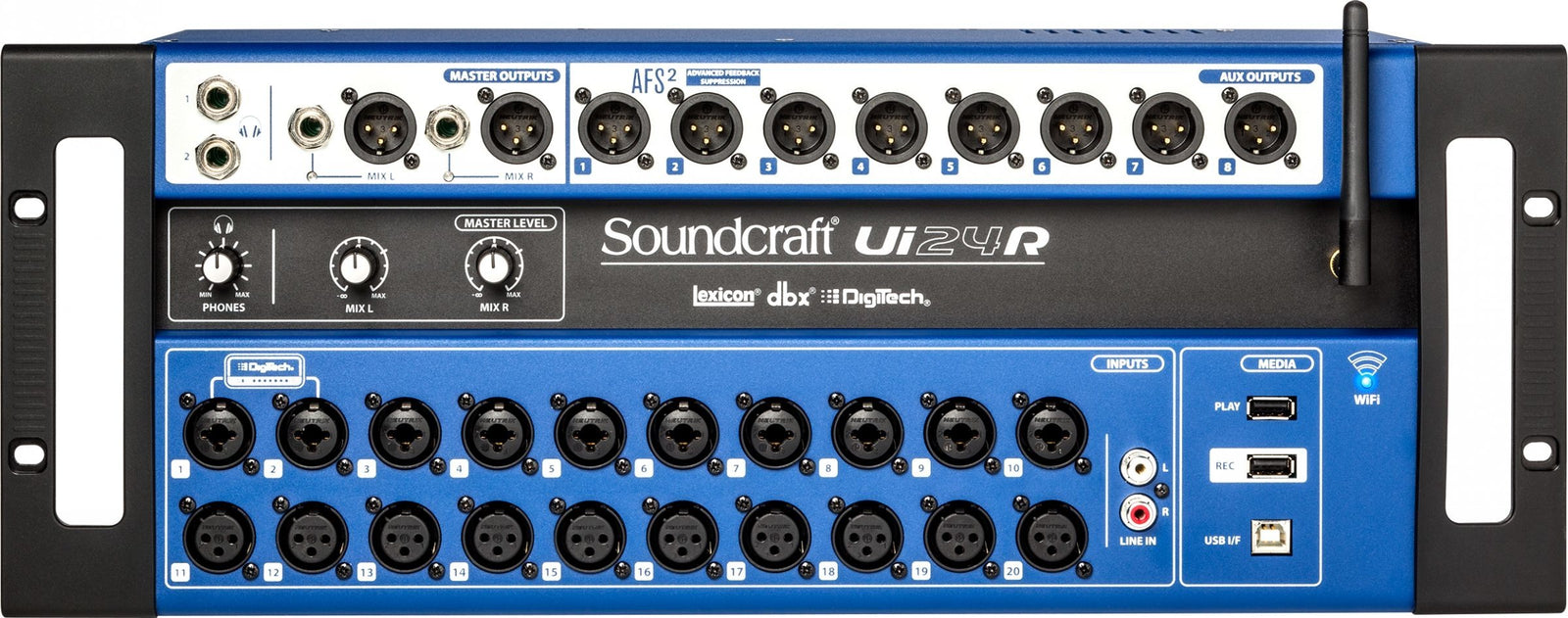

    The Soundcraft Ui24R is a digital mixing console and powerful multi-track USB recorder with integrated dual-band WLAN, HDMI and Ethernet connectivity. 24 input channels can be conveniently controlled from up to ten PCs, tablets and smartphones. An app is not necessary for this, the HTML5 browser of the smartphone or tablet is sufficient.

    The signal processing options via the graphical user interface are considerable. From professional compressors and de-essers to automatic mixers, feedback suppression, amp modeling, input/output delays and 120-band real time analyzers, no wishes are left unfulfilled. The Studer preamp design guarantees fat, warm analog sound.

    Another highlight are the flexible recording options. Thus, 22 tracks can be recorded simultaneously to USB stick and via USB-B port to the DAW. The low latency of the USB-B port also allows it to be used as an audio interface. Insert your plug-ins from the computer into the channels and create a multitrack recording of your live concert on the USB stick in parallel.

    The Soundcraft Ui24R can be used as a "stagebox mixer" on stage, in the rehearsal room and in the studio. The unit is also ideal for permanent installations, as all settings can be saved and recalled at any time.

    Software 3.0 also allows two devices to be linked together. This doubles the number of possible input/output points and allows you to create two independent mixes.


    Technical Data

    • 24+4 channel mixer with integrated stagebox and DSP
    • Parallel 22-track multitrack recording to USB stick & via computer interface
    • Dual band WLAN & Ethernet integrated (2 antennas, 2.4/5 GHz)
    • Compatible with iOS, Android, Windows, Mac OS, Linux (via HTML5)
    • Up to 10 devices simultaneously (tablet, smartphone, PC)
    • Signal processing from dbx, Lexicon, Digitech
    • 19"/4 U, weight 5.1 kg
    • Dimensions 48 x 17.5 x 16.5 cm (width x height x depth)
    • 20 high-quality Studer Mic Preamps
    • Storable gain and +48 volt status
    • 24 mono/4 stereo channels (RCA/USB/FX returns)
    • Input channels with 250 ms delay, 4-band parametric EQ, gate, compressor, de-esser, HPF
    • Channel 1/2 incl. Digitech Amp Modeling
    • 8 aux busses with 31-band graphic EQ, AFS2 feedback suppression, dbx compressor
    • Two additional aux paths configurable via headphone output
    • Automatic mixer with 2 groups of 8 channels each
    • Simultaneous display of all virtual mixer elements in HDMI mode for large screens/touchscreens
    • Ducking function with free channel assignment
    • Stereo sum with 31-band graphic EQ, dbx compressor
    • 120-band real-time analyzer (inputs and outputs)
    • 500 ms (approx. 170 m) delay in the output busses
    • 4 Lexicon effect busses (reverb, delay, chorus, room)
    • Subgroups, View Groups, Mute Groups
    • Show/Snapshot call with security lock
    • Doubling of connections by cascading two Ui24R (from software V3.0)

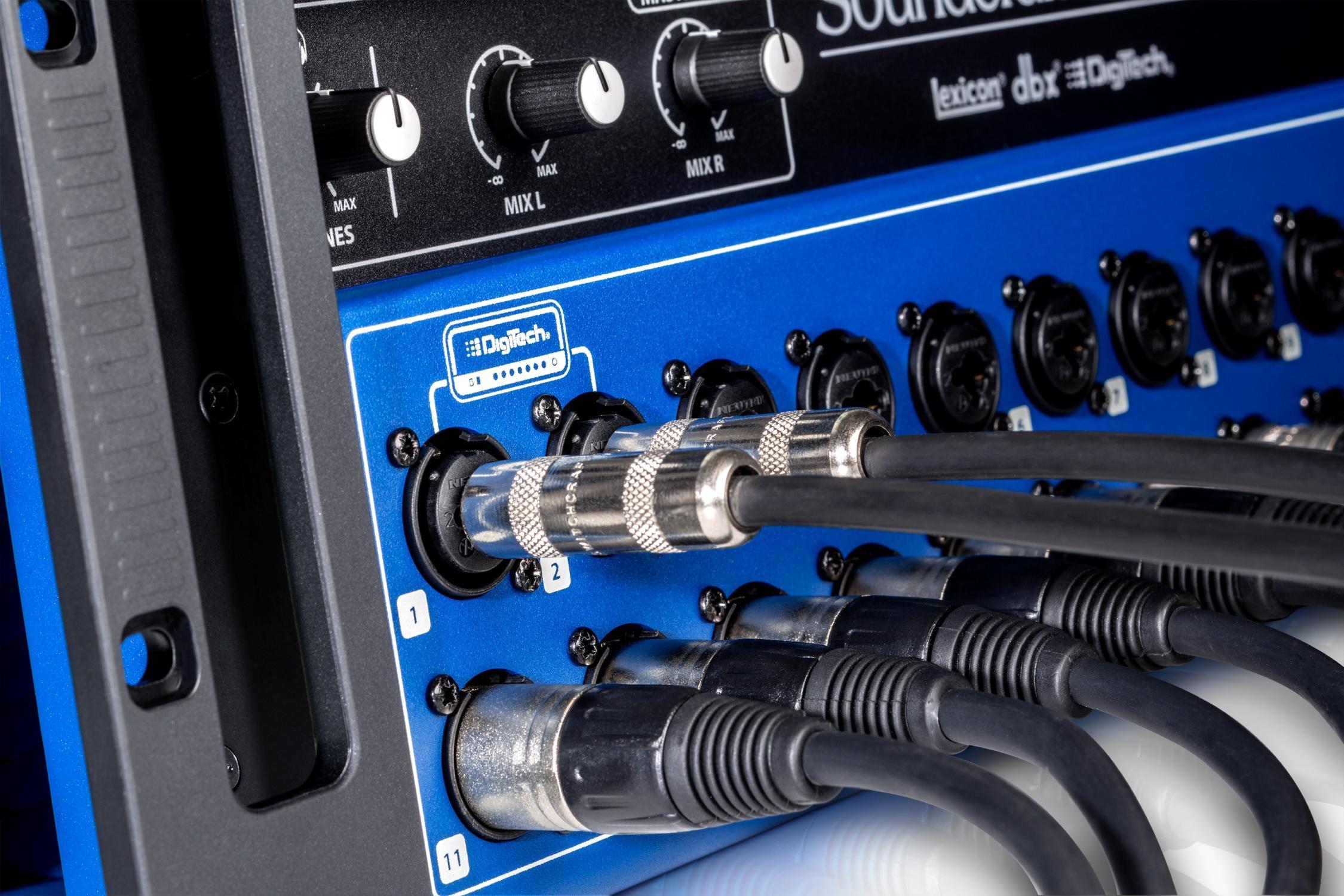

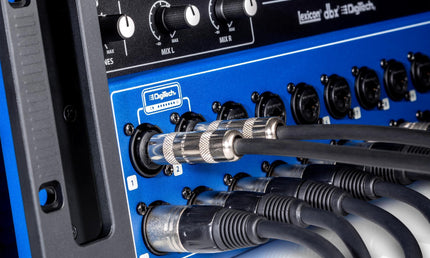

    • 20 Mic/Line inputs (10x XLR, 10x Combo)
    • 2 RCA/ RCA line inputs
    • 2-channel USB media player (MP3, WAV, AIFF playback)
    • 22-channel USB recording "Direct to Memory
    • 32-channel recording interface (I/O via USB-B port)

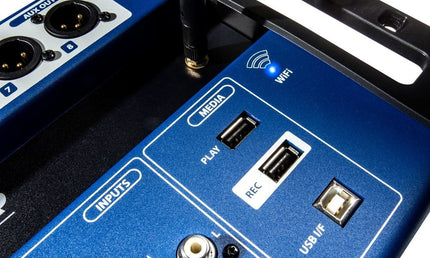

    • 2 additional USB ports for controller & updates
    • 2 XLR & jack main outputs
    • 8 XLR aux outputs
    • 2 headphone outputs

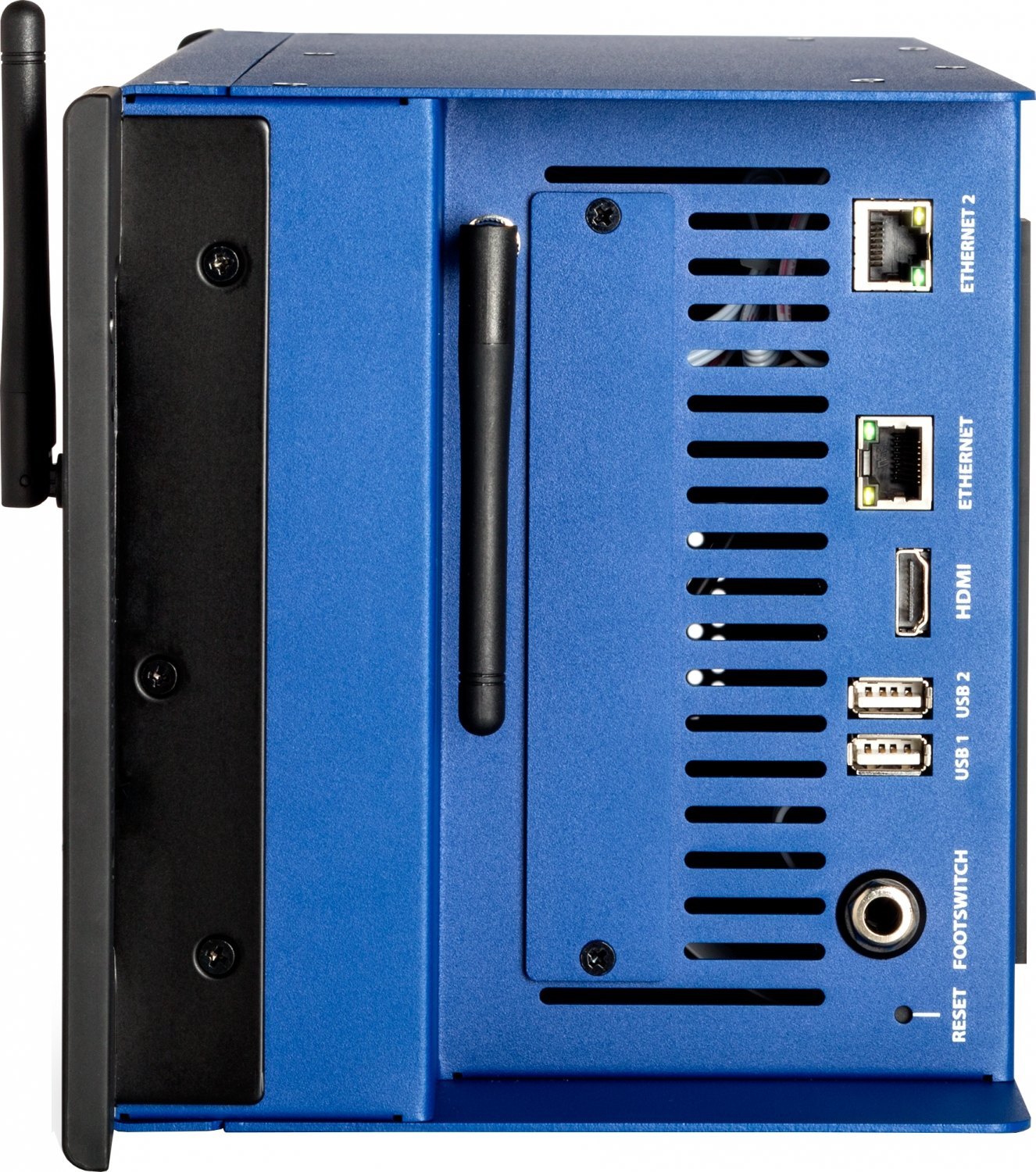

    • RJ45 Ethernet port
    • HDMI port for mixer control via monitor
    Productformulier

    €1.457,00 Incl. BTW

    • MerkSoundcraft

    SKU: SCRUI24R

    Nog 1 op voorraad

      • Jouw pakket wordt verzekerd verzonden
      • Betaal voorafachteraf of in termijnen
      • Jouw gitaar wordt afgesteld en gecontroleerd
      • Gratis 30 dagen bedenktijd
      • Je krijgt 2 jaar garantie op nieuwe artikelen
