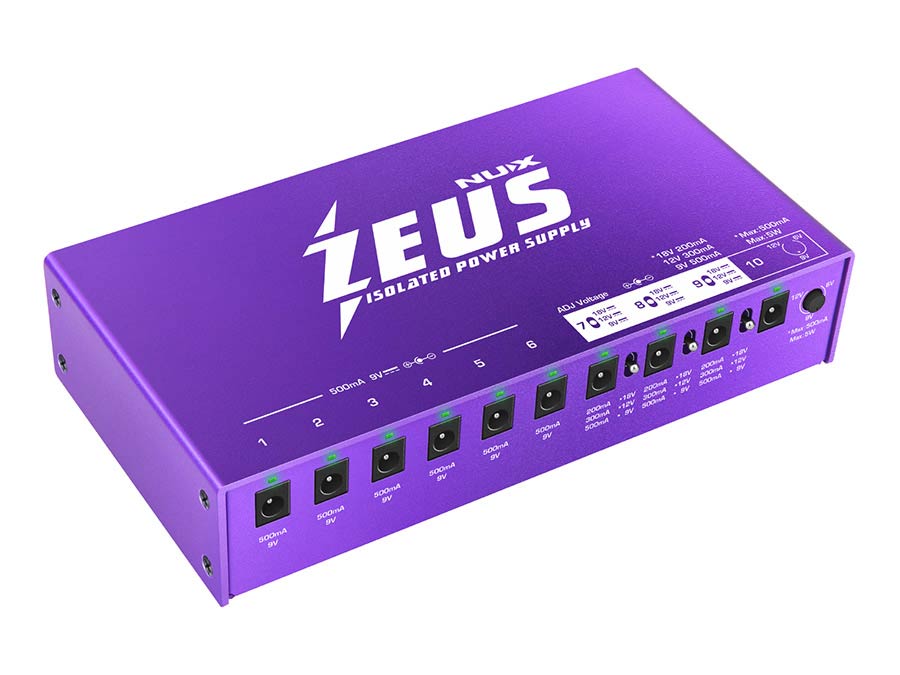

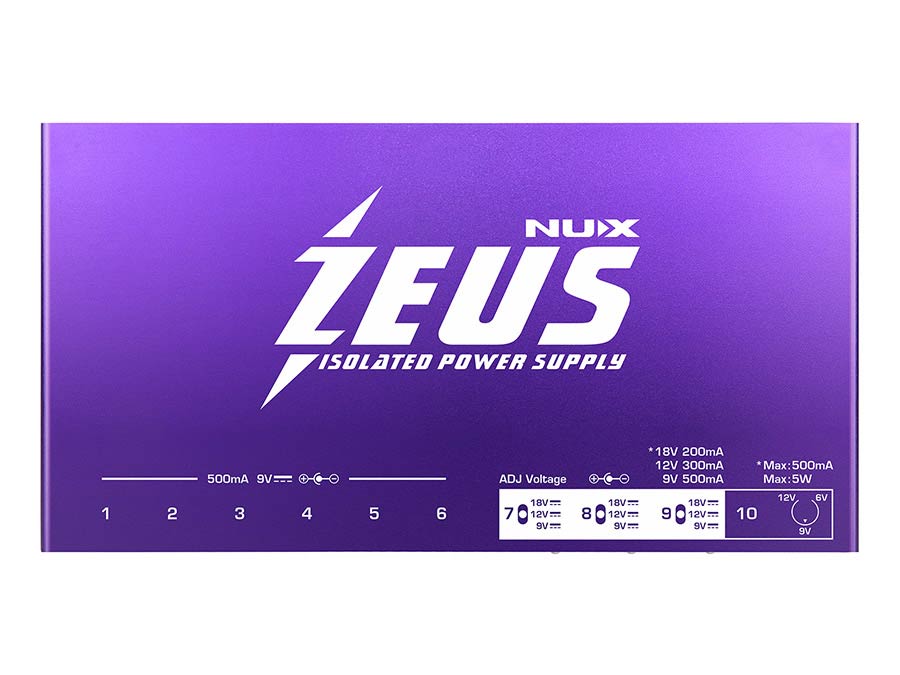

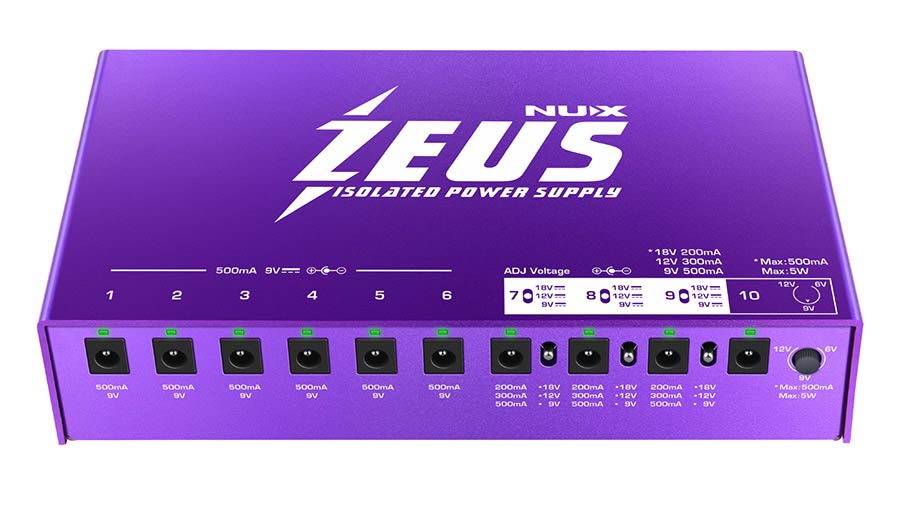

NUX ZEUS Universele Volledig Geïsoleerde Voeding

Powerful and fully isolated power supply for effects pedals

The NUX ZEUS is a professional pedalboard power supply with ten fully isolated DC outputs. Each output has its own isolated switching transformer, greatly reducing ground loops, hum, and interference between effects pedals.

The power supply is suitable for both analog effects pedals and modern digital pedals with higher current consumption. Thanks to the various voltages and current strengths, you can power a complete pedalboard from one central, stable power supply.

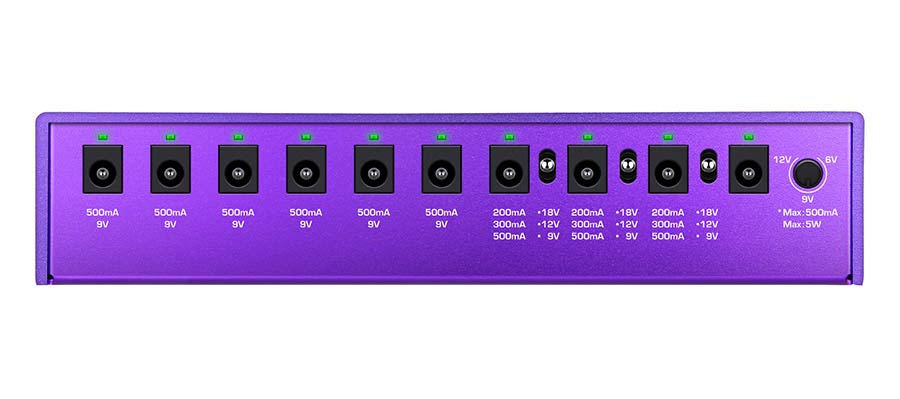

Six powerful 9V outputs

Six separate outputs each deliver 9V DC with a maximum of 500 mA. This allows most standard effects pedals and many power-hungry digital effects to be powered directly.

Because all outputs are electrically isolated from each other, a disruptive effects pedal is less likely to cause noise in the rest of the signal chain.

Three switchable outputs for 9V, 12V or 18V

Three high-current outputs can be individually set to 9V, 12V or 18V. At 9V, these outputs deliver a maximum of 500 mA, at 12V a maximum of 300 mA, and at 18V a maximum of 200 mA.

This makes the ZEUS suitable for pedals that require a higher operating voltage. Always check the required voltage, polarity, and current consumption of the effects pedal before connecting it.

Adjustable output from 6V to 12V

The tenth output has an adjustable voltage from 6V to 12V. This allows you to influence the behavior of suitable fuzz, overdrive, and phaser pedals, among other things.

A lower supply voltage can result in a softer, more compressed, or so-called battery-sag response in certain analog pedals. Only use this function with pedals that are suitable for the chosen voltage.

Designed for digital pedals with a high startup current

Digital effects can temporarily draw more current during power-up than during normal operation. The NUX ZEUS is designed to handle a high temporary startup current, allowing power-hungry DSP effects to start reliably.

The self-regulating outputs and optical feedback control contribute to a stable voltage, a low noise level, and the preservation of the dynamics of your effects pedals.

USB connection for mobile devices

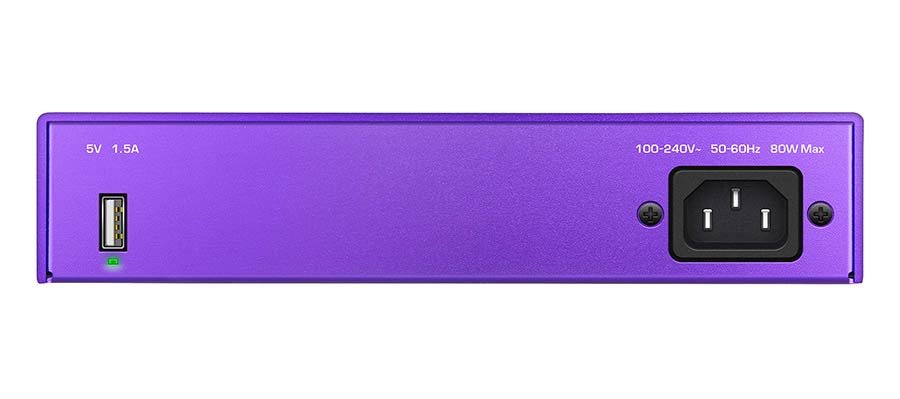

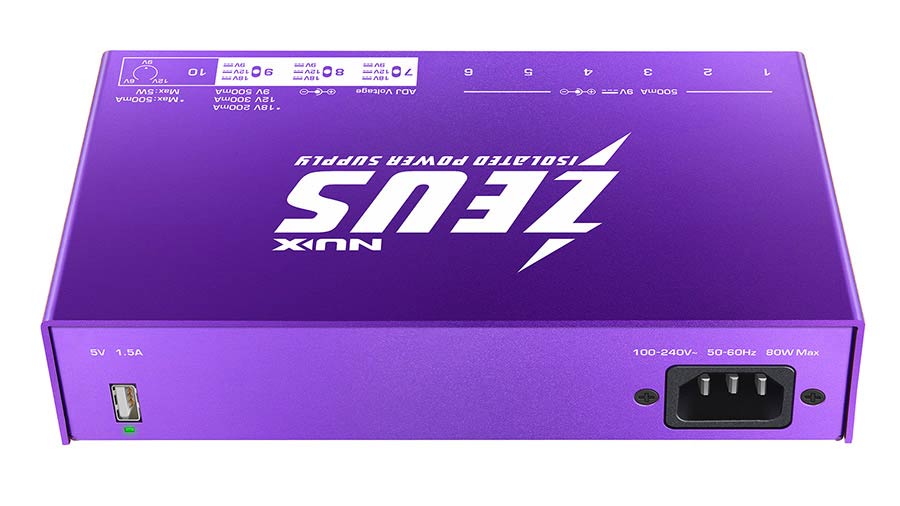

In addition to the ten isolated pedal outputs, the ZEUS has a 5V USB connection. This can be used for charging or powering compatible mobile devices and accessories.

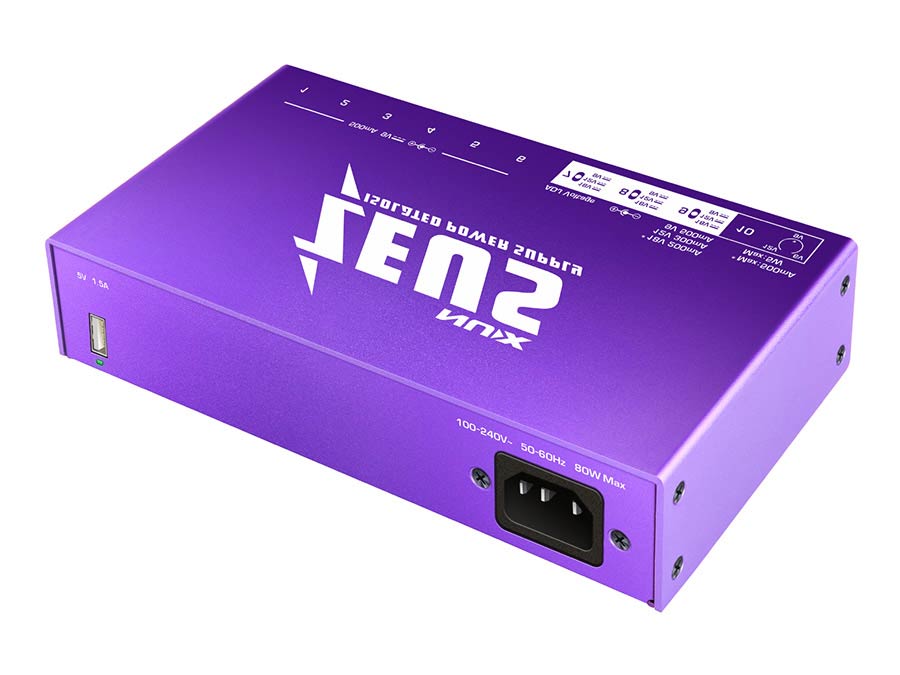

The universal mains input supports 100 to 240V AC at 50 or 60 Hz. This allows the power supply to be used in various countries without manual voltage switching.

Complete with connection cables

The ZEUS comes with ten standard DC power cables in two different lengths. In addition, a reverse polarity cable, a 3.5mm mini-jack cable, and a current doubler adapter are included.

With the current doubler adapter, two suitable outputs can be combined for equipment that requires more current. Both used outputs must be set to the same voltage.

Key features

• Professional pedalboard power supply for analog and digital effects
• Ten fully isolated DC outputs
• Separate isolated switching transformer per output
• Six outputs of 9V and a maximum of 500 mA
• Three switchable outputs for 9V, 12V or 18V
• One adjustable output from 6V to 12V
• Suitable for power-hungry digital DSP effects
• Helps reduce hum, ground loops, and mutual interference
• 5V USB connection for compatible equipment
• Universal mains input for international use
• Compact and lightweight metal casing
• Supplied with power cables and special adapters

Product specifications

Brand	NUX
Model	ZEUS
Product type	Fully isolated pedalboard power supply
Number of isolated outputs	10
Outputs 1–6	9V DC, maximum 500 mA per output
Outputs 7–9	Switchable: 9V/500 mA, 12V/300 mA or 18V/200 mA
Output 10	Adjustable from 6V to 12V
USB output	5V USB
Mains input	100–240V AC, 50/60 Hz
DC connections	2.1mm barrel connectors
Standard polarity	Negative tip
Dimensions	195 × 101 × 42 mm
Weight	658 grams
Included 50 cm DC cables	5
Included 30 cm DC cables	5
Reverse polarity cable	1 × 50 cm
3.5mm mini-jack cable	1 × 50 cm
Current doubler adapter	1 × HX adapter

Merk	NUX
Serie	ZEUS
Materiaal	Metal enclosure
Afmetingen	195 × 101 × 42 mm
Gewicht	658 gram
Land van herkomst	China
Artikelnummer	ZEUS
Barcode (EAN)	8719147554384
