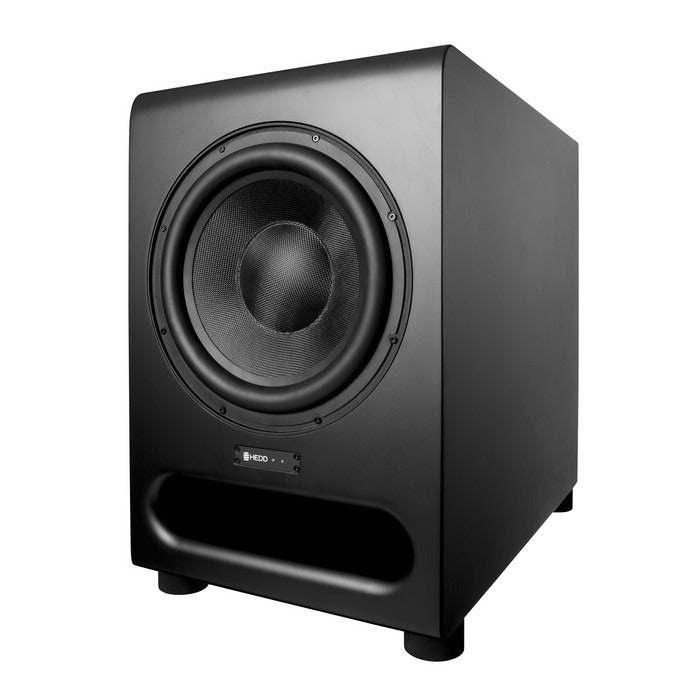

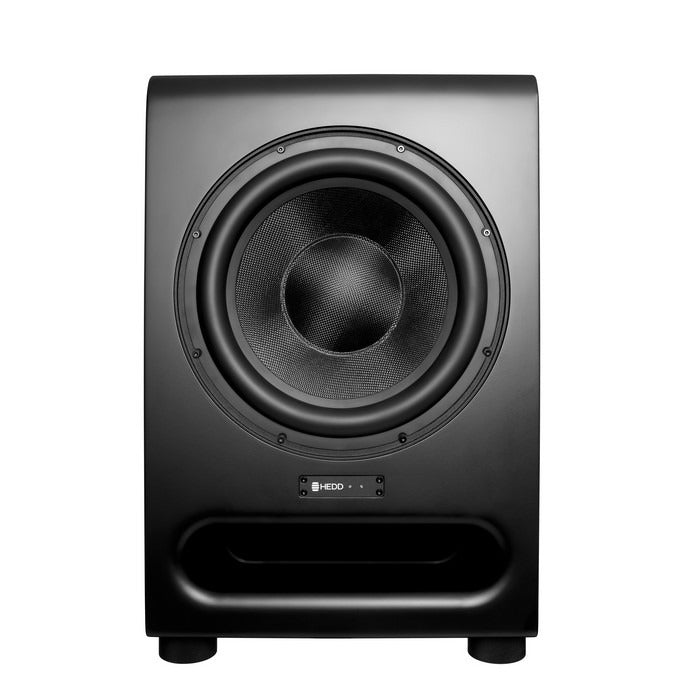

HEDD BASS 12 – actieve studiosubwoofer
Reguliere prijs
€2.999,00
Uitverkoopprijs
Reguliere prijs
Inclusief belasting.
Verzendkosten berekend bij het afrekenen.
Betaalopties
Betaalmethoden
Beschikbaarheid voor afhalen kon niet worden geladen
Uitverkocht
Uitverkocht
Momenteel niet op voorraad
Informeer naar de levertijd
- Eigen luthier in huis, jouw instrument wordt gratis afgesteld
- Fysieke winkel in hartje Utrecht
- Gratis verzending vanaf €69
- Meer dan 25 jaar ervaring in de muziekindustrie
HEDD BASS 08 and BASS 12
BASS 08 and BASS 12 are the first HEDD subwoofers to appear on the market. They excel in precise low frequency reproduction by newly
developed drive units, excellent high power amplifiers and the use of linear phase (or FIR) filters down to 20 Hz. Furthermore they offer a satellite
output that can influence the output (group delay) of the units to achieve a complete linear phase operation of satellite-sub systems – if HEDD
monitors with switched on Lineariser are in place.
BASS 08 and BASS 12 are the first HEDD subwoofers to appear on the market. They excel in precise low frequency reproduction by newly
developed drive units, excellent high power amplifiers and the use of linear phase (or FIR) filters down to 20 Hz. Furthermore they offer a satellite
output that can influence the output (group delay) of the units to achieve a complete linear phase operation of satellite-sub systems – if HEDD
monitors with switched on Lineariser are in place.
Alltogether we introduce 3 major innovations into the world of subwoofers:
1. CoP (Closed or Ported) / An innovative choice for the bass response nobody had offered before: removable plugs in the ports together with
adapted FIR (Finite Impulse response) filtering allow optimum results in either operating mode.
adapted FIR (Finite Impulse response) filtering allow optimum results in either operating mode.
2. Switchable HEDD Lineariser® to avoid any phase errors within the low frequency reproduction down to 20 Hz in either mode (closed or
ported). A complete Linear Phase operation down to 20 Hz is achieved with high resolution by using a separate clock for low frequencies.
ported). A complete Linear Phase operation down to 20 Hz is achieved with high resolution by using a separate clock for low frequencies.
3. Complete Linear Phase Satellite-Subwoofer systems / By applying switchable group delay at the satellite output. The potential listener distances
between subwoofers and satellites can be compensated in .5 dB steps within a ± 2 m range, together with HEDD MK2 monitors a Linear Phase
satellite system can be installed for the first time.
between subwoofers and satellites can be compensated in .5 dB steps within a ± 2 m range, together with HEDD MK2 monitors a Linear Phase
satellite system can be installed for the first time.
Additional HEDD subwoofer features
- Switchable Low Pass filtering for use with diff. crossover frequencies including two LFE modes
- Switchable LF range normal/ extended (15% lower=less SPLmax) and a +10dB option for LFE
- AES interface input selector for analog, AES left, AES right or AES mono
- Input sensitivity pot. range -10 dB to + 4dB, so AD conversion can be optimized
- Gain: Analog pot from -12 dB to +12 dB
BASS 08 and BASS 12 are compatible with our previous generation of studio monitors.
Kenmerken
- Woofer (honeycomb diagram): 12’’ (2.5’’ voice coil)
- Frequency response (-3 dB): 20 - 80 Hz
- Upper frequency limit (var.): 40 - 120 Hz
- LF range (-3 dB): normal / extended: 20 / 16 Hz
- Input analog / digital (AES): 2x / 1x XLR
- Input impedance (balanced): 22 kΩ
- Input gain: ± 12 dB
- Input sensitivity: 0 dB = 90 dB SPL/m: -10 / -4 / 0 / +4 dB
- Output: AES “through”: XLR
- HEDD Lineariser®, disengageable, delay: 30 ms
- Phase switch: 0 / 90 / 180 / 270°
- Satellite offset (analog out): ± 2m, in .5 m steps
- Frequency response (-3 dB): 20 - 80 Hz
- Maximum SPL at 1 m (half space): 115 dB
- Power amplifier / universal mains 110 - 240 V: 700W ICEpower
- AD/DA Conversion: 96 kHz / 32 Bit
- Cabinet with satin lacquer finish: black
- Dimensions (H x W x D): 595 x 380 x 610 mm
- Weight: 32.1 kg
- Warranty: 2 years
