MONO Power Supply, Large – pedalboard power supply

The MONO Power Supply, Large is an ultra-thin, expandable pedal power supply. It features 10 high-current, low-noise isolated outputs, including 3 with variable voltage (9/12/18V). Each Power Supply is built with a lightweight and durable aluminum enclosure, and at just 1” deep, it fits under the shallowest pedalboards. When you’re ready to graduate to a larger board, you can easily daisy-chain the MONO Power Supply, Large with a Small or Medium and power up to 16 pedals.

FEATURES

THOUGHTFUL DESIGN

MONO Power Supply features individual orange status LEDs at each output, soft cable sleeving, and elegant, curved edges, making it as aesthetically pleasing as it is functional. Pair it with an IEC plug, and it is universally compatible with any power source worldwide.

RELIABLE & EFFICIENT

MONO Power Supply delivers reliable power to your pedals with features like short-circuit, overload, and thermal protection. Its input filter and multi-stage output filters ensure an extremely low noise level while still operating energy efficiently.

MOUNTING KIT INCLUDED

Each MONO Power Supply comes with both a mounting kit and a hook-and-loop solution to attach the unit to a pedalboard.

WHAT'S INCLUDED

TECH SPECS

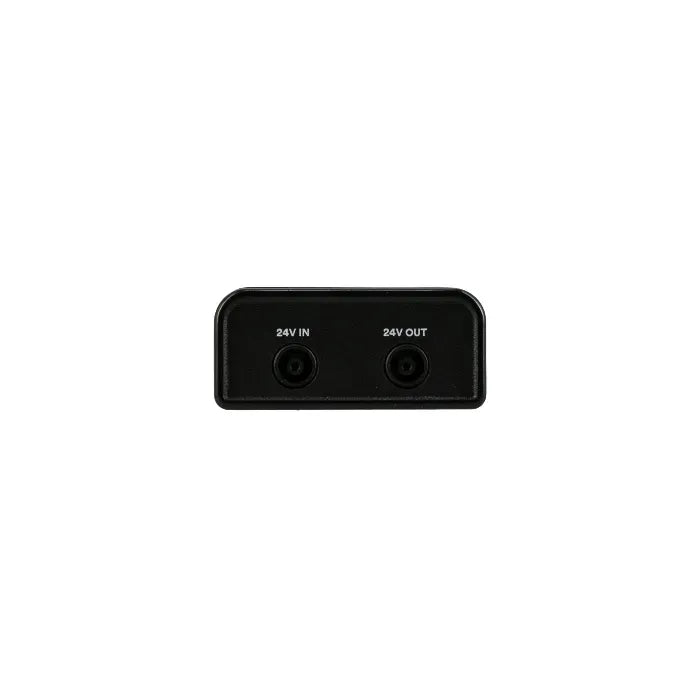

Input: 24V DC @ 3A (5.5mm x 2.1mm plug)

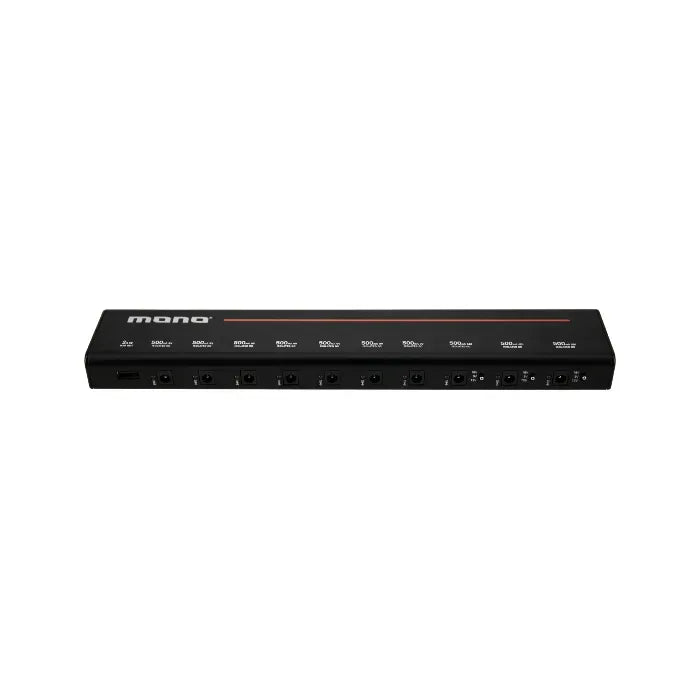

Outputs: 9V DC 500mA, center negative (x7) | 9/12/18V DC 500mA, center negative (x3) | 5V 2A, USB-A (x1) | 24V DC 2A (x1)

DIMENSIONS

Size: 12.32" x 2.20" x 0.98" (313mm x 56mm x 25mm)

Weight: 10.72 oz (304 g)
