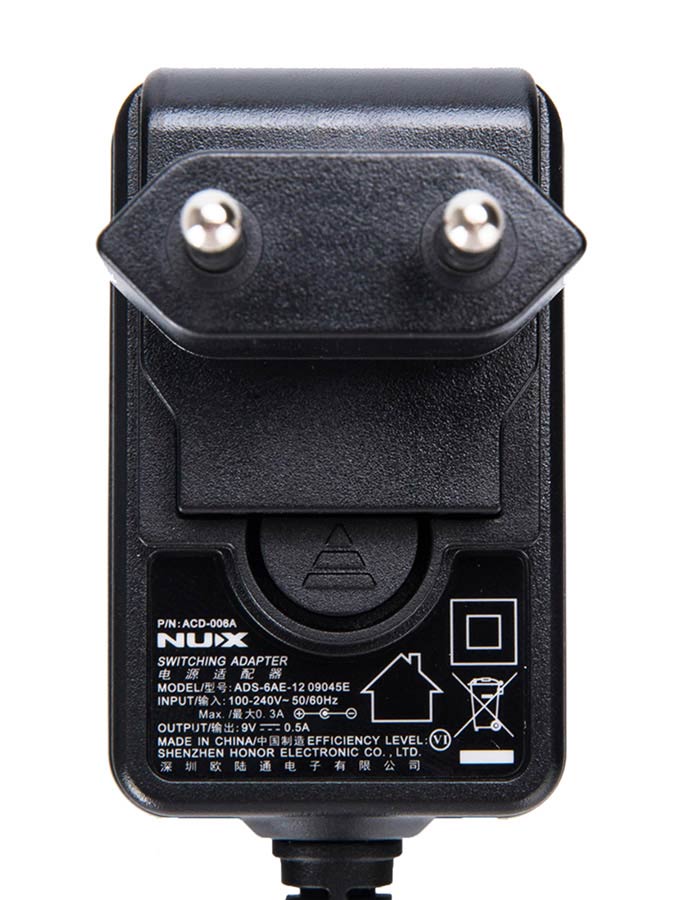

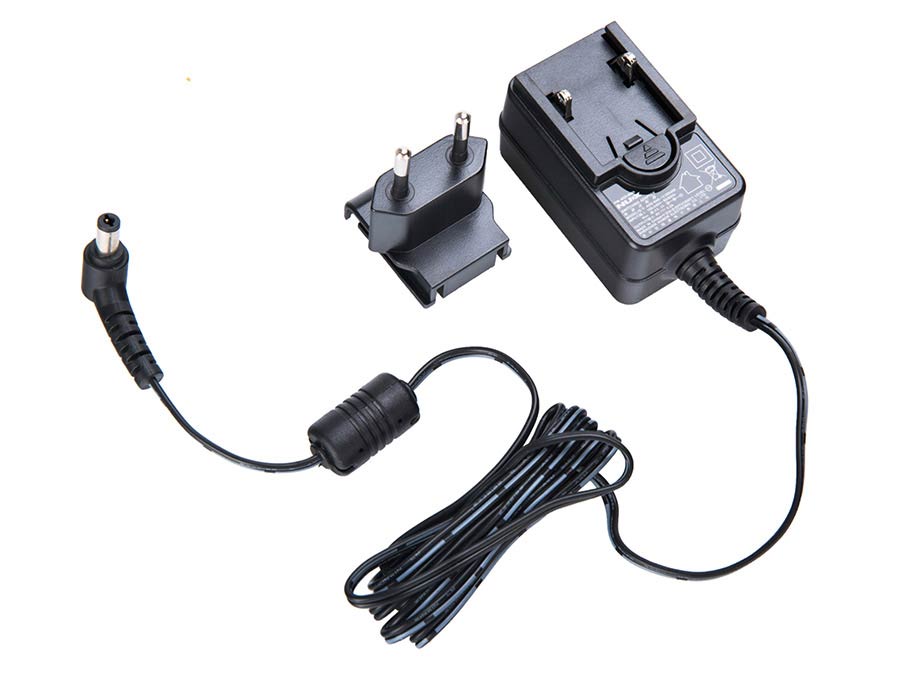

NUX ACD-006A/EU 9V DC adapter 500 mA

Reliable 9V Power Supply for NUX Effect Pedals

The NUX ACD-006A/EU is a compact power adapter for effect pedals and other suitable music equipment. The adapter provides a stable output voltage of 9V DC with a maximum of 500 mA and features the commonly used center-negative polarity.

This original NUX adapter is suitable for various NUX effect pedals, including the NUX Mighty Lite BT MKII. Devices from other brands can also be powered, provided that the voltage, polarity, connection, and required current are fully compatible.

Less Dependent on Batteries

With a fixed power adapter, you don't have to constantly replace batteries. This is practical for home use, rehearsals, and performances. The available capacity of 500 mA makes the adapter suitable for both analog and various digital effect pedals that do not require more than 500 mA.

Check the Connection Before Use

The adapter has a standard cylindrical DC plug of 5.5 × 2.1 mm with a negative center pole. Before connecting, always check that your device operates on 9V DC, is center-negative, and requires a maximum of 500 mA.

Do not use the adapter if the voltage, polarity, or connection type differs. An unsuitable power supply can cause damage to connected equipment.

Key Features

• Original power adapter from NUX
• Stabilized output voltage of 9V DC
• Maximum output current of 500 mA
• Center-negative polarity
• DC plug of 5.5 × 2.1 mm
• Suitable for various NUX effect pedals
• Also suitable for the NUX Mighty Lite BT MKII
• Suitable for other devices with exactly matching power requirements
• European version

Specifications

Product Type	AC Power Adapter
Input Voltage	100–240V AC, 50/60 Hz
Output Voltage	9V DC
Maximum Output Current	500 mA
Polarity	Center-negative
DC Connection	5.5 × 2.1 mm
Version	EU
Color	Black

Merk	NUX
Serie	Accessories
Afmetingen	9x8x5.8
Gewicht	0.119 kg
Land van herkomst	China
Artikelnummer	ACD-006A/EU
Barcode (EAN)	8719147430084
