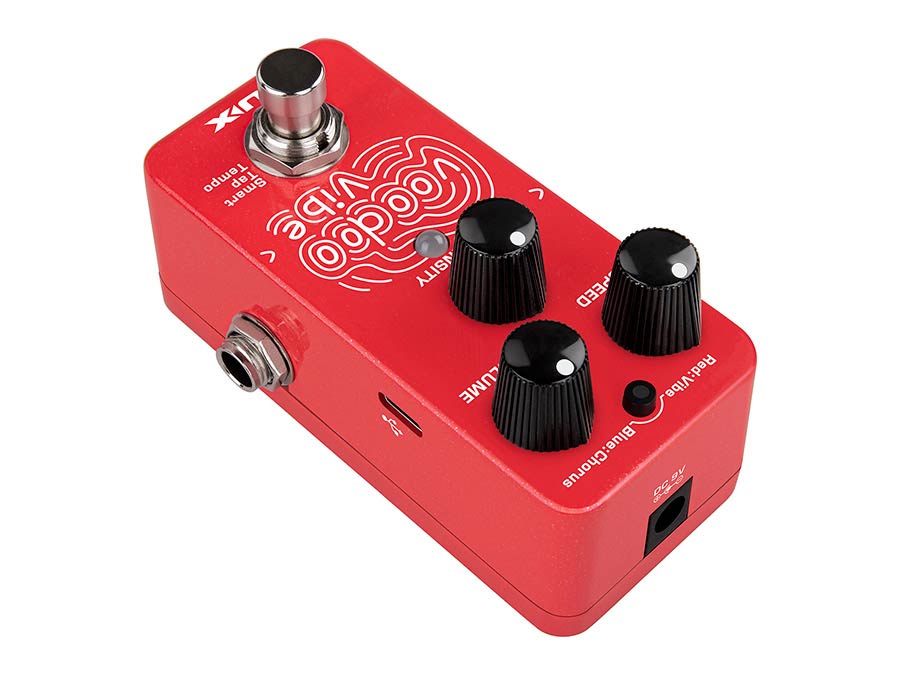

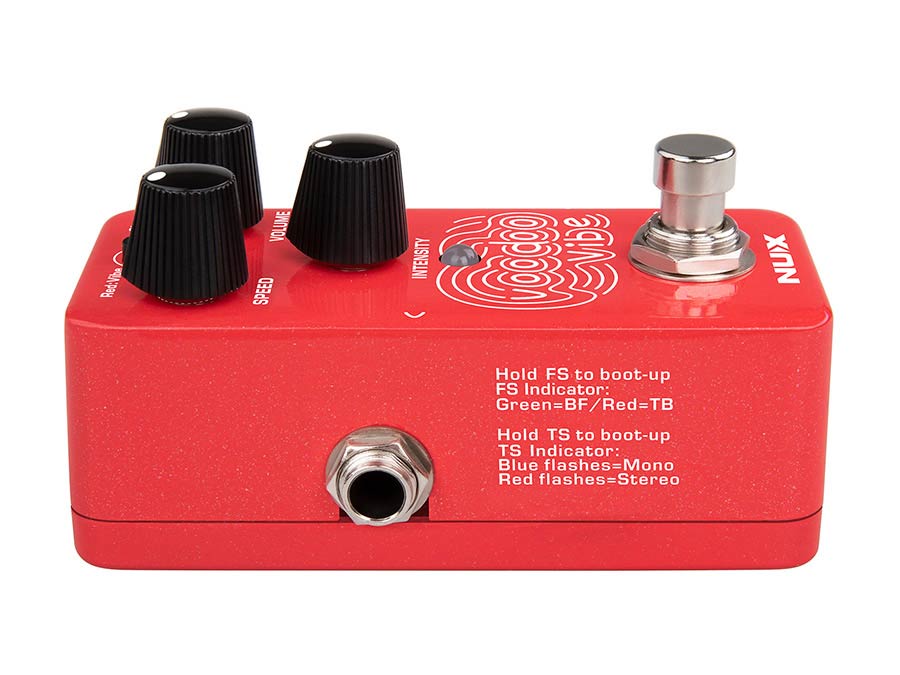

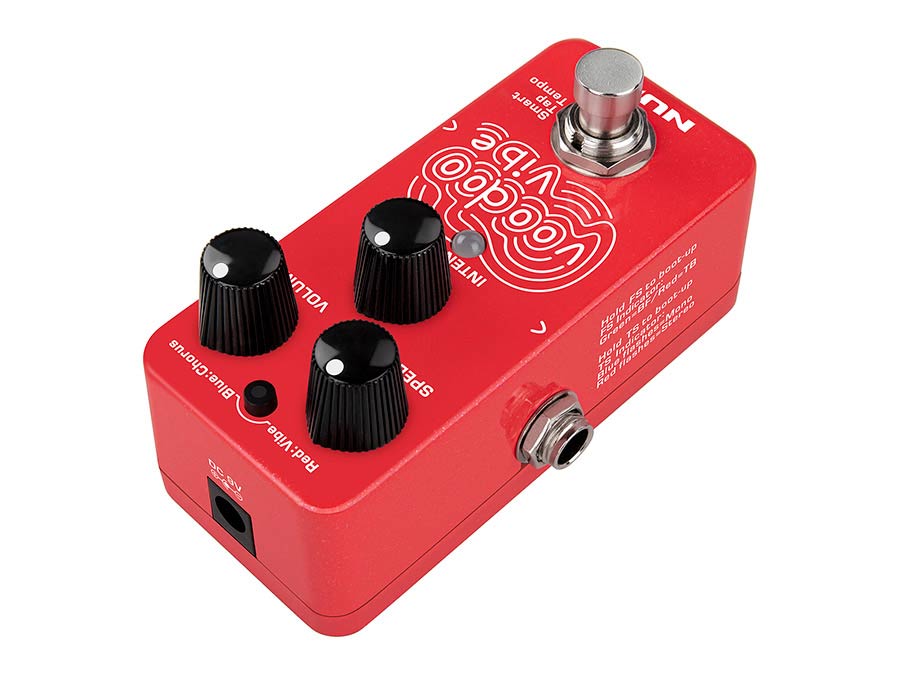

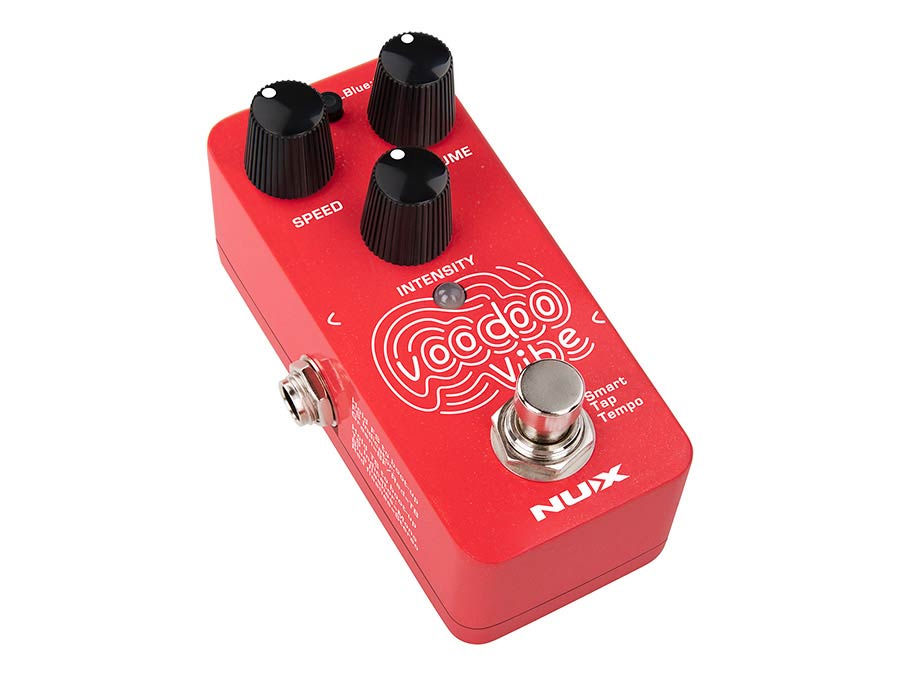

NUX NCH-3 Core Series Univibe Pedal

The NUX Voodoo Vibe is a compact Uni-vibe pedal with two different modes: Vibe and Chorus. You switch between these modes by holding down the footswitch. This pedal, inspired by Hendrix's legendary sounds of the 60s, adds a spatial dimension to your sound in an incredibly tasteful way!

Thanks to NUX's modern DSP technology, the Voodoo Vibe offers a perfect combination of analog warmth and digital precision. The pedal can be powered with just 9V, unlike its 60s predecessors which required 18V. With the addition of a Smart Tap Tempo function and improved Chorus mode, the Voodoo Vibe maintains its characteristic vibes and analog sound, without the volume loss issues often found in digital pedals.

With convenient controls such as Intensity and Speed, you can easily adjust the depth of the effect and control the modulation speed. Despite its compact size, this pedal is a powerhouse, supporting both mono and stereo inputs and outputs. And thanks to the included USB-C port, you can easily perform firmware updates to keep your pedal up-to-date.


Features

-2 Models in a compact housing
-In Chorus mode, Intensity changes the depth of the swoosh effect
-In Vibrato mode, Intensity changes the degree of pitch modulation
-Smart Tap Tempo
-True-bypass or Buffer-bypass (Tails)
-Supports Stereo I/O with TRS cable
-Low power consumption (less than 100mA)
-Analog dry signal for low noise and no latency


Specifications

-Input Impedance: 1M Ohm
-Output Impedance: 10k Ohm
-Dynamic Range: 103 dB

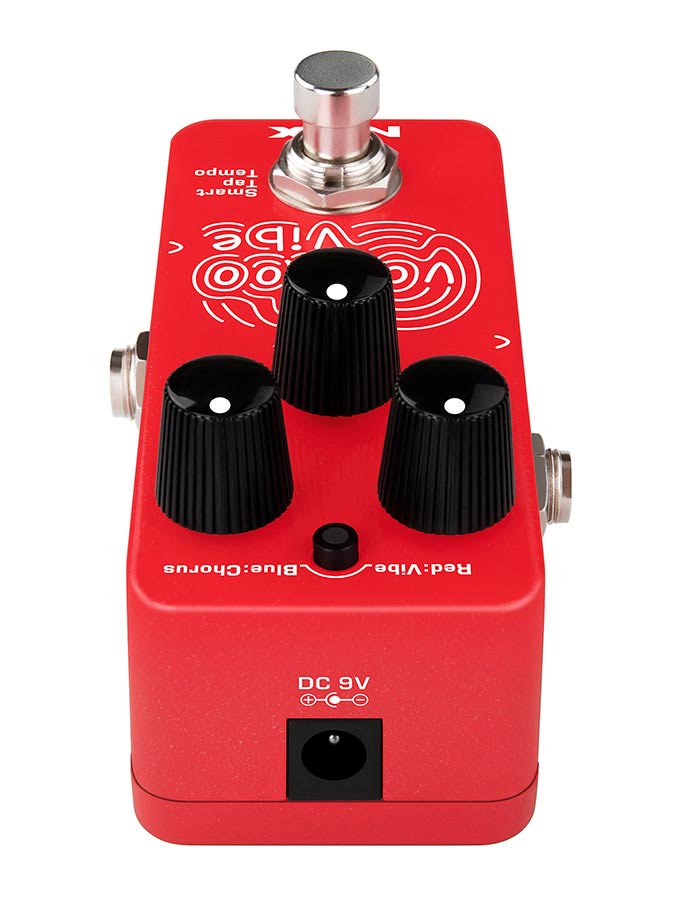

-Power Supply: 9V DC (Negative tip, Optional ACD-006A adapter)
-Current Consumption: Less than 100mA
-Dimensions: 94mm (L) x 51mm (W) x 53mm (H)
-Weight: 175g
